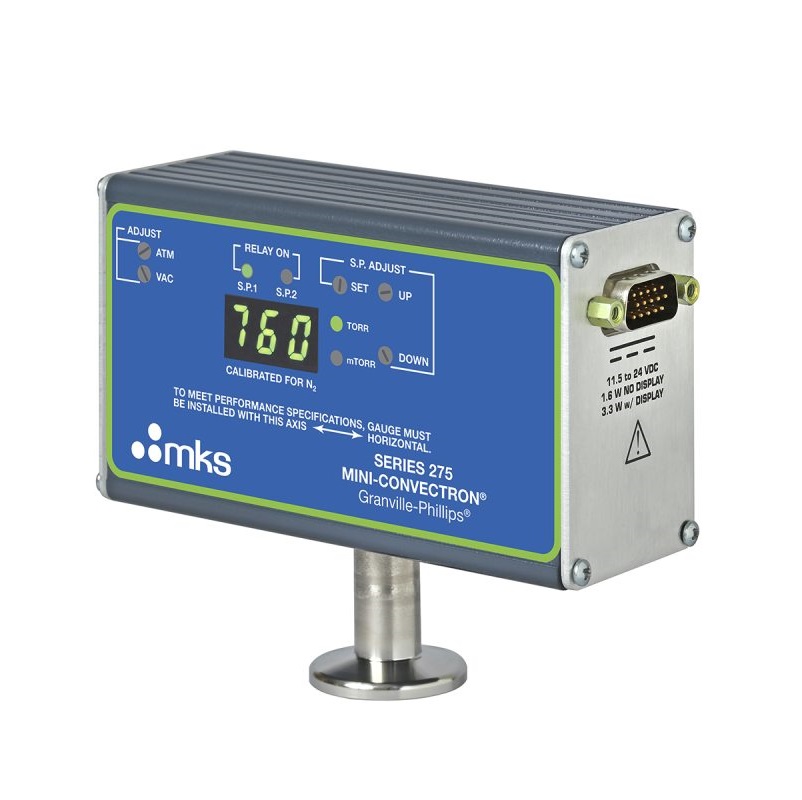

MKS 275 ເຄື່ອງປ່ຽນຄວາມກົດດັນສູນຍາກາດ Mini-Convectron® (1x10^-4-1000 Torr; NW16 ISO-KF)
Absolute Measurement Range: 1.0 x 10-4 to 1000 Torr
Digital Communication: No
Type: Vacuum Module
Display: 3-digit green LED
Interface: analog
Fitting Type: NW16 ISO-KF
Installation Orientation: Horizontal preferred
Operating Temperature: 0 - 40°C ambient, non-condensing
Maximum Bakeout Temperature: 150°C with electronics removed
Storage Temperature: -40 - 70°C
Analog Output: 0.375-5.659 VDC (0-1000 Torr Non-linear)
Power Requirements: 11.5 - 26.5 VDC, 0.1 Amps at 11.5 VDC, 1.6 Watts maximum, 1.8 maximum (with display)
Internal Volume: 40 cm3 (2.5 in3)
Exposed Materials: 304 stainless steel, borosilicate glass, Kovar, alumina, NiFe alloy, polyimide
Electronic Casing and Flange: Aluminum extrusion
Compliance: CE
Filament: Gold-plated Tungsten
Set Point Contact Rating: 1 Amps at 30 VDC resistive, AC non-inductive
Connectors: 9-pin subminiature-D male
Units: Torr
