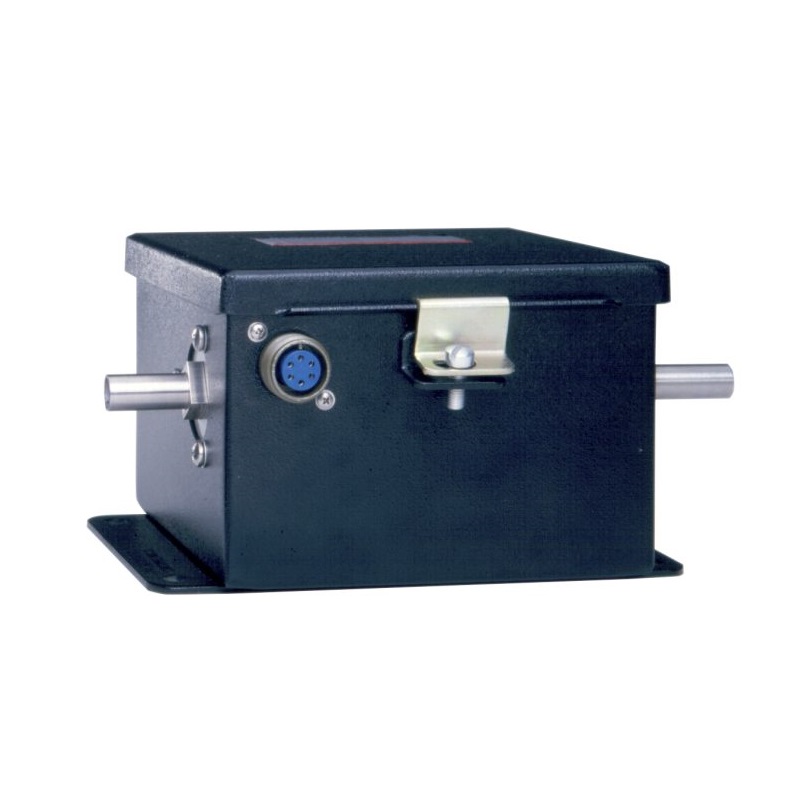

Sensor Type: Industrial Capacitance Manometer
Measurement Type: Differential
Full Scale Range: 1 Torr
Sensor Temperature: 45°C
Fitting Type: 0.5 in. OD tube
Accuracy: ±0.15% of Reading (± temperature coefficients)
Resolution: 0.01% of Full Scale
Analog Output: 0 - 10 VDC and 4 - 20 mA
Electrical Connector: 6-pin Circular
Zero Temperature Coefficient: 0.008% of Full Scale/°C
Span Temperature Coefficient: 0.02% of Reading/°C
Operating Temperature Range: 5 - 40°C
Exposed Materials: Px side: Inconel
Pr side: Inconel, Ceramic, Palladium, Stainless Steel, Glass
Volume: Px side: 7.0 cc
Pr side:19.0 cc
Overpressure Limit: 140 kPa
Power Requirements: 115/230 VAC
For specific range please check the attachment below!
