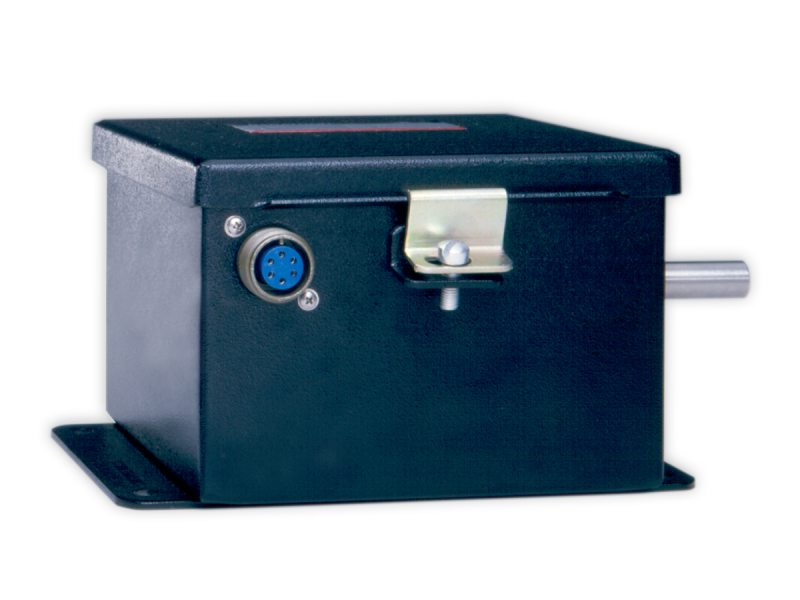

MKS 220DA ເຄື່ອງວັດແທກຄວາມຈຸຢ່າງແທ້ຈິງ Baratron® ທີ່ມີຄວາມຮ້ອນ (1 - 25000 Torr, 45°C)
Specifications
Full Scale Ranges: 1, 10, 20, 100, 1000, 5000, 10000, 15000, 20000, 25000 mmHg (other engineering units available on request)
Resolution: 0.01% of F.S.
Accuracy: ±0.15% of Rdg. (± temperature coefficients)
Temperature Coefficients
Zero:
0.008% of F.S./°C for 1 Torr
0.005% of F.S./°C > 1 Torr
Span: 0.02% of Rdg./°C
Ambient Operating Temperature: 15° – 40°C
Sensor Operating Temperature: Temperature controlled at 45°C
Maximum Overpressure: 35 psia
Materials Exposed to Gases: Px side Inconel®
Volume (Px): 7.0 cc
Fittings:
Standard: ½'' OD (12.7 mm) diameter tube
Optional: Swagelok® 8 VCR® female, NW16-KF, mini-CF rotatable (High pressure units, 5000 to 25000 mmHg F.S., are available with certain fittings; consult factory for a complete listing.)
Power Required: 115/230 VAC, 50/60 Hz
Outputs: 0 to 10 VDC into > 10K Ω load and 4 to 20 mA into < 500 Ω load
Electrical Connector: Mating connector P/N MS306A-14S-6S; MKS Connector Kit 220C-AC-K1
For specific range please check the attachment below!
