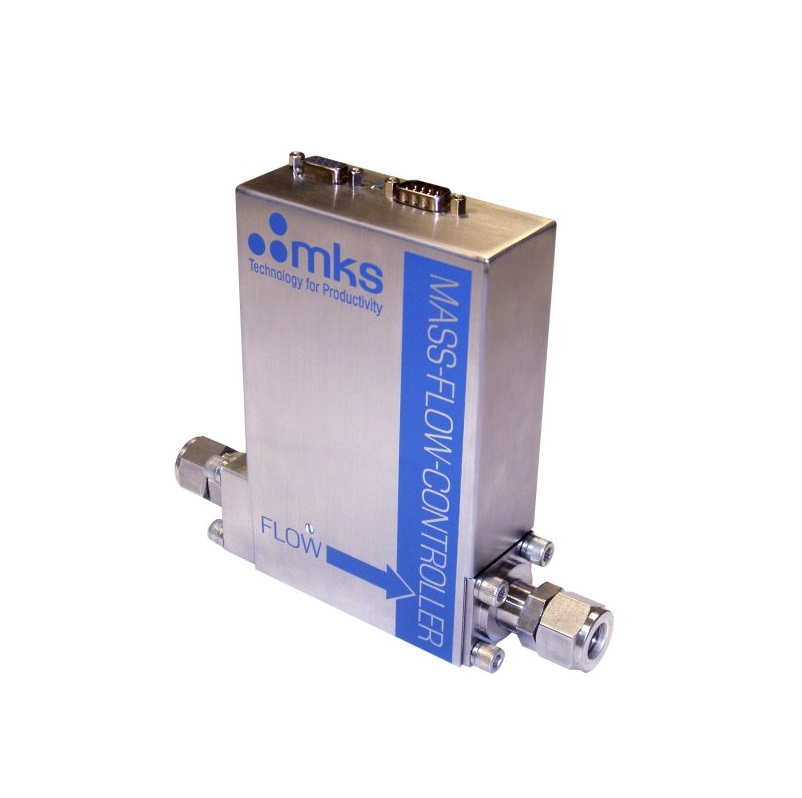

Control Range: 2 to 100% of Full Scale
Full Scale Flow Range : 50, 100, 200, 300 slm (N2 in slm)
Fitting Type: Standard: 8 VCR® male
Analog I/O Connector: 15-pin Type "D" male
Seal Material: Buna-N, Neoprene®, Kalrez®
Maximum Inlet Pressure: 100 psig
Normal Operating Pressure Differential: 15 to 60 psid (50, 100 slm)
25 to 60 psid (200 slm)
40 to 60 psid (300 slm)
Typical Accuracy: Standard: ±1% of Full Scale
Repeatability: ± 0.2% of Full Scale
Resolution: 16 Bit
Zero Temperature Coefficient: <0.05% of Full Scale /°C
Span Temperature Coefficient: <0.10% of Full Scale /°C
Pressure Coefficient: ± 0.02% of Reading/psi
Warm-up Time: 30 minutes
Typical Settling Time: <1 sec
Operating Temperature: 15° to 40°C
Power Requirements: 20.5 to 30 VDC, 300 mA
Compliance: CE
For specific range please check the attachment below!
