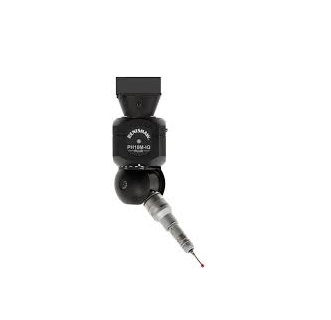

MITUTOYO PH10MQ Motorized Probe Head
Position change:
Horizontal direction: ±180º (at 7.5º increments, 48 positions)
Vertical direction: 0 to 105º (at 7.5º increments, 15 positions)
Mountable probe: MTP2000, TP7M, TP200, TP20, TP2-5W, QVP, SP25, SP600XE, MPP-10
Note that some combinations are prohibited on the same system.
Extension: PEM1, PEM2, PEM3, PAA1, PAA2, PAA3
More than one extension cannot be joined for use. However, combined use of PAA+PFCF1, PAA1+PFCF2, and PAA1+PFCF3 are permitted.
Use on an extension is not permitted for the WIZprobe/LC50/LC100/QVP.
Applicable models: CNC coordinate measuring machines
Configuration
PH10MQ head
Joint key S10
Allen key (nominal 1.5)
Allen key (nominal 2.5)
HCU-1
PHC10-2 (RS232C)
