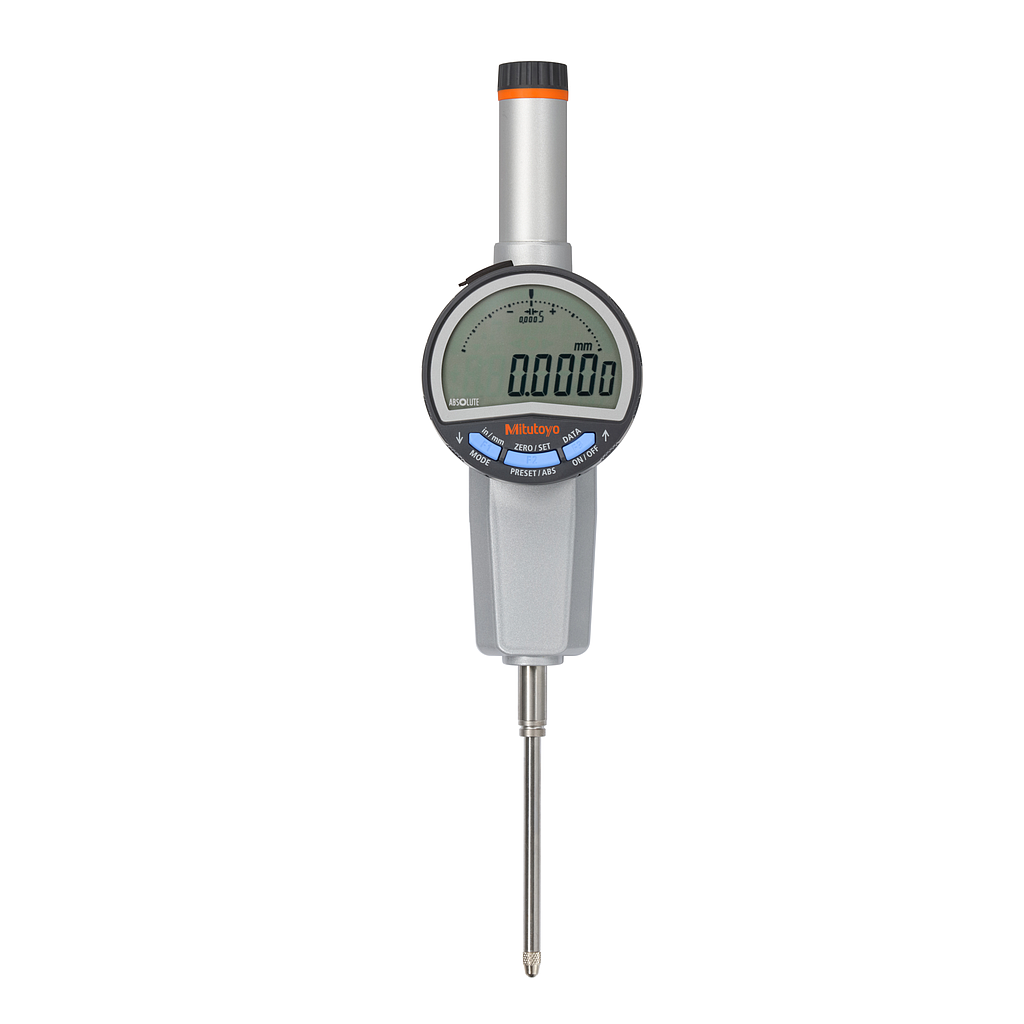

MITUTOYO 543-731B ຕົວຊີ້ວັດດິຈິຕອນ (0 - 50.8mm/2'')

Digital/Analog: Digital

Inch-Metric: Inch/Metric

Range: 2" / 50.8 mm

Digital step: 0.00002"/0.00005"/0.0001"/0.0005"/0.0005 mm/0.0001 mm/0.01 mm

Max. Permissible Error: E MPE (Total Range):: ±0.00020"/0.005 mm

H MPE (Hysteresis): 0.00008"/0.002 mm

R MPE (Repeatability): 0.00008"/0.002 mm

Protection: IP42

Type: EN ISO Standard

Scale: Electrostatic capacitance type absolute linear encoder

Display: LCD, character height 11 mm, 330° rotatable

Measurement frequency (MAX/MIN/RANGE): 50 times/s

Alarm: Low voltage, setting errors, sensor error, display overflow a.s.o.

Stem Ø: 8 mm

Contact point: Carbide ball, thread: M2.5x0.45

Power supply: 1 battery CR2032

Battery life: Approx. 2700 hours (continuous use)
