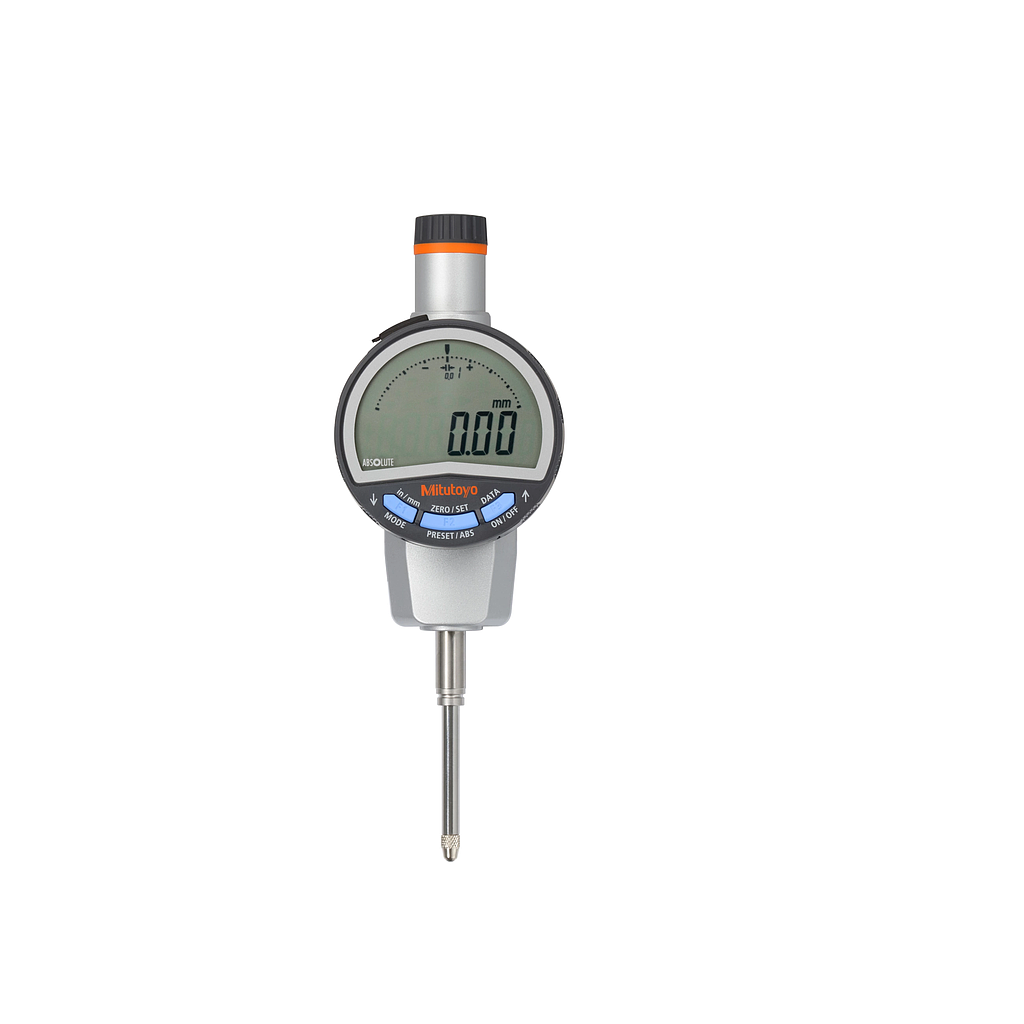

MITUTOYO 543-726B ອຸປະກອນວັດດິຈິຕອນ (1"/25.4 mm, 0.0005"/0.01 mm)

Digital/Analog: Digital

Inch-Metric

Range: 1"/25.4 mm

Digital step: 0.0005"/0.01 mm

Max. Permissible Error E MPE (Total Range): ±0.001"/0.02 mm

H MPE (Hysteresis): 0.001"/0.02 mm

R MPE (Repeatability): 0.0005"/0.01 mm

Measuring force MPL: ≤1.8 N

Protection: IP42

Type: EN ISO Standard

Mass: 190 g

Display: LCD, character height 11 mm, 330° rotatable

Max. response speed: Unlimited

Measurement frequency (MAX/MIN/RANGE): 50 times/s

Alarm: Low voltage, setting errors, sensor error, display overflow a.s.o.

Stem ∅: 8 mm

Contact point: Carbide ball, thread: M2.5x0.45

Power supply: 1 battery CR2032

Battery life: Approx. 2700 hours (continuous use)

Digital Scale: Electrostatic capacitance type absolute linear encoder

ON/OFF: Yes

ABS / INC (INC ZERO): Yes

Function lock: Yes

GO/±NG judgement: Yes

DATA/HOLD: Yes

Auto Power OFF setting: Yes

Counting direction switchable: Yes

Customizing keys: Yes

Calibration warning function: Yes

Low voltage alarm: Yes

Digital step switchable: No

Digimatic data output: Yes

Digimatic S1 Bidirectional interface: Yes

Analog bar resolution switchable: Yes

Inch/Metric switchable: Yes
