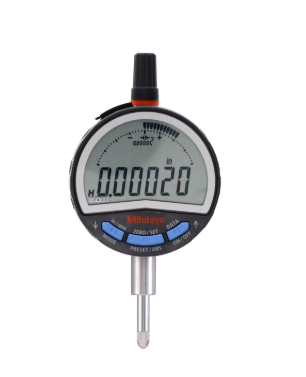

MITUTOYO 543-702B ຕົວຊີ້ວັດດິຈິຕອນ (0.5", 0.00002")

Digital/Analog: Digital

Inch-Metric: Inch/Metric

Range: 0.5"/12.7 mm

Digital step:

0.00002"/0.00005"/0.0001"/0.0005"

0.0005 mm/0.001 mm/0.01 mm

Max. Permissible Error E MPE (Total Range): ±0.00012"/0.003 mm

H MPE (Hysteresis): 0.00008"/0.002 mm

R MPE (Repeatability): 0.00008"/0.002 mm

Measuring force MPL: ≤1.5 N

Protection: IP42

Type: ASME/ANSI/AGD Standard

Mass: 165 g

Display: LCD, character height 11 mm, 330° rotatable

Max. response speed: Unlimited

Measurement frequency (MAX/MIN/RANGE): 50 times/s

Alarm: Low voltage, setting errors, sensor error, display overflow a.s.o.

Stem ∅: 9.52 mm

Contact point: Carbide ball, thread: No.4-48UNF

Power supply: 1 battery CR2032

Battery life: Approx. 2700 hours (continuous use)

Digital Scale: Electrostatic capacitance type absolute linear encoder

ON/OFF: Yes

ABS / INC (INC ZERO): Yes

Function lock:Yes

GO/±NG judgement: Yes

DATA/HOLD: Yes

Auto Power OFF setting: Yes

Counting direction switchable: Yes

Customizing keys: Yes

Calibration warning function: Yes

Low voltage alarm: Yes

Digital step switchable:Yes

Digimatic data output: Yes

Digimatic S1 Bidirectional interface: Yes

Analog bar resolution switchable:Yes

Inch/Metric switchable:Yes
