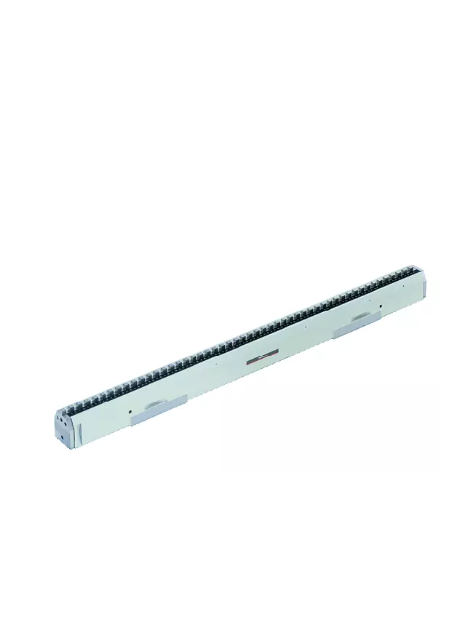

MITUTOYO 515-713 ກວດສອບ Master (0-40.5")

Inch-Metric: Inch

Range: 0-40.5"

Block step: 0.5" straight

Block pitch accuracy:

Range ≤ 310 mm: ±2.5 µm

310 < range ≤ 610 mm: ±3.5 µm

610 < range ≤ 1010 mm: ±5.0 µm

1010 < range ≤ 1510 mm: ±8.0 µm

Parallelism of blocks:

Range ≤ 310 mm: 1.2 µm

310 < range ≤   610 mm: 1.5 µm

610 < range ≤ 1010 mm: 2.0 µm

1010 < range ≤ 1510 mm: 2.5 µm

Hardness: > 64 HRC

Mass: 22 kg
