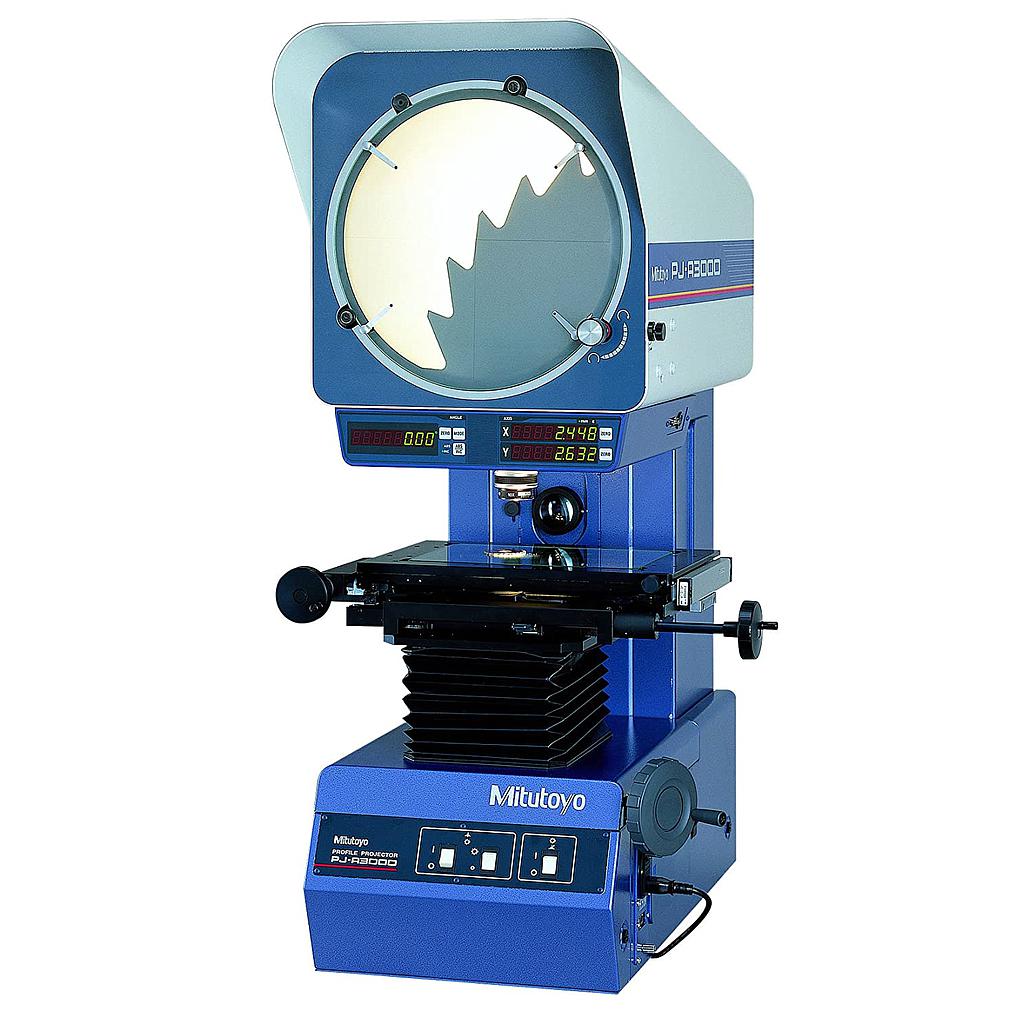

MITUTOYO PJ-A3010F-200 ໂປເຈັກເຕີໂປຣໄຟລ໌ (±360°)
Projected image: Projected image
Protractor screen
Effective diameter: 12.4” / 315mm
Screen material: Fine ground glass
Reference line: Cross hair line
Angle display (LED) Resolution: 1° or 0.01° (switchable), Range: ±360°
Functions: Absolute/incremental mode switching, Zero Set
Projection lens : Standard Accessory 10X (172-202)
Magnification accuracy
Contour illumination: ±0.1% or less
Surface illumination: ±0.15% or less
Contour illumination
Light source: Halogen bulb (24V, 150W)
Optical system: Telecentric system
Functions 2-stage brightness switch, Heat-absorbing filter
Surface illumination
Light source: Halogen bulb (24V, 150W)
Optical system: Vertical illumination with a half-reflection mirror
XY range: XY range
Resolution: 0001” / 0.001mm
Table size: 14.96x9.84”
(380x250mm)
Effective table area: 10.47x6.69”
(266x170mm)
Max. workpiece height: 3.64” (92.5mm)
Power supply: 120V AC, 50/60Hz
Standard accessories: 10X projection lens set, masking shield, power cord, halogen bulb, fuse, grounding wire, allen wrench, vinyl cover
