Measuring direction: ±X, ±Y, +Z
Position change: Manually for A axis (vertical direction): ±93º, and for B axis (horizontal direction): To be fixed to optional direction in range of ±300º
Directionality (XY: 2D): ±0.8 m or less (with the STANDARD FORCE 10mm stylus), ±2.5 m or less (with the 50mm stylus)
Directionality (XYZ: 3D): ±1 m or less (with the STANDARD FORCE 10mm stylus), ±4 m or less (with the 50mm stylus)
Amount of over-travel:
- XY: ±14º
- Z: +4.0mm (STANDARD FORCE); +3.7mm (MEDIUM FORCE); +2.4mm (EXTENDED FORCE)
Maximum stylus length: 50mm (STANDARD FORCE); 60mm (MEDIUM FORCE); 60mm (EXTENDED FORCE)
Stylus mounting method: M2 screw
Mass of a single probe unit: 22g (Probe body: 13g, Probe modulel: 9g)
Durability: 1,000,000 times
Probe head: Essential: PH10M/PH10MQ/MIH/PH1
Applicable models: Manual/CNC coordinate measuring machines
Configuration

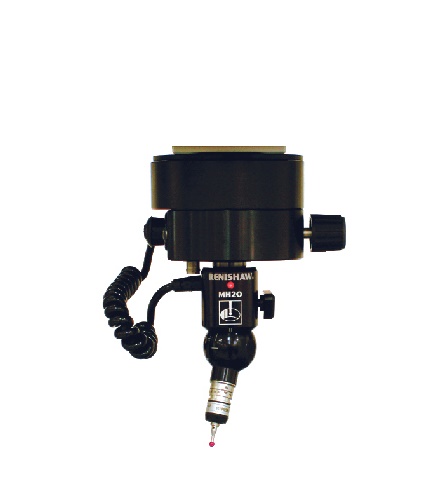

MH20
TP20 standard module
Stylus
Cleaning tool
MS2-stylus tool
Stylus
Operation Manual
Certificate
