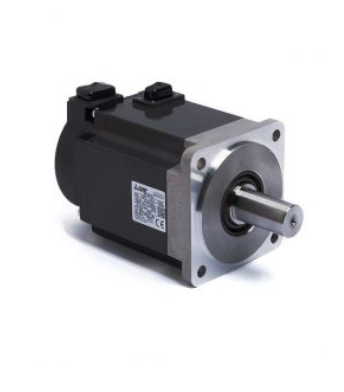

MITSUBISHI HG-KN23J-S100 ມໍເຕີເຊີໂວ

Supply voltage (AC): 200Vac class

Rated current: 1.3A

Rated active power (kW): 200W / 0.2kW

Rotational speed: 3000rpm5000rpm (maximum)

Torque: 0.64Nm nominal

Maximum torque: 1.9Nm

Moment of inertia: 0.000225kg.m2 (0.225kg.cm2)

Net Height (mm): 77.1 mm

Net Width (mm): 60 mm

Net Depth (mm): 118 mm

Mounting mode: 60x60mm flange mounting

Resolution: 131072ppr (equivalent to 17-bit) feedback

Dimensions: H77.1mm x W60mm x D118mm

Ambient air temperature for operation: 0…+40 °C

Maximum radial load: 245 N

Maximum axial load: 98 N

Maximum current: 3.9 A
