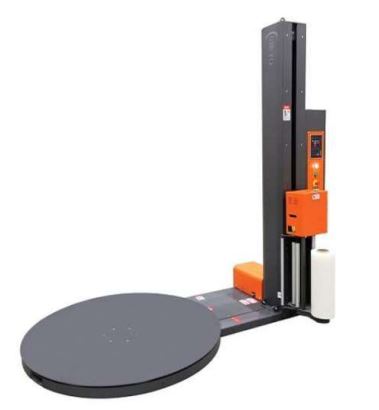

Mikyo MK-1624-PS Pallet stretch ເຄື່ອງຫໍ່

- The machine line integrates an automatic film discharger that can adjust tension

using the HMI screen

-HMI touch screen. In particular, the language used is English - Vietnamese

- Load capacity: 2000kg

- Largest pallet size: L1200 x W1200 x H2400 mm

- Turntable speed: 3-12 rpm

- Turntable size: 1650 mm

- Membrane up and down speed: 1.5 - 5.5 m/min

- Wrapping speed: 20 - 40 pallets/hour (1x1.2x1.2 m pallet with 2 turns

wrap)

- Voltage: 1 Phase 220V/50Hz

1- Power: 1.5 kW

- Machine weight: 650 Kg

- Machine dimensions: L2800 x W1650 x H2800 mm

- Turntable height: 85 mm

- Ambient temperature of the machine: 0 ~ 40 degrees Celsius

- Noise: 75dB

- Humidity: less than or equal to 70% (Relative humidity)

- Size of film roll:

+ Film roll width: 500 mm

+ Film roll diameter: Maximum 250 mm

+ Membrane roll core diameter: 76 mm

+ Film roll weight: Maximum 15kg

+ Film roll thickness used in the range: 17 ~ 25 (Micrometer)
