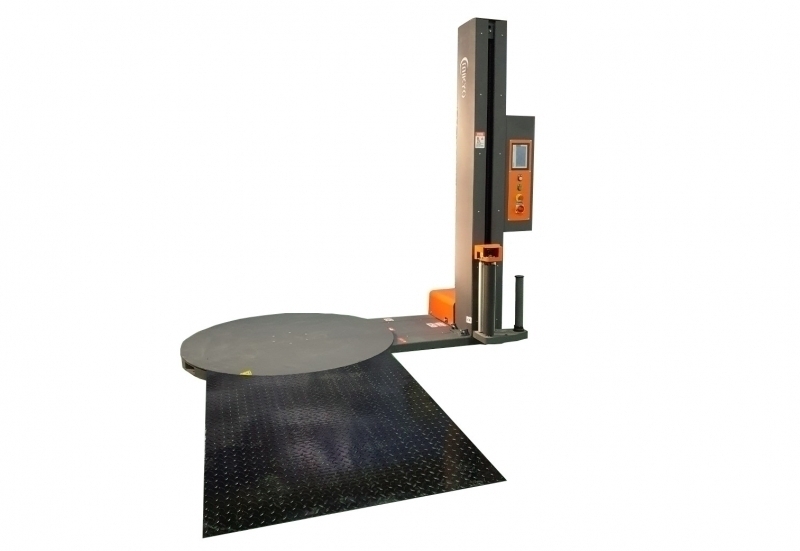

Mikyo MK-1620-PS Pallet stretch ເຄື່ອງຫໍ່ (3-12 rpm)

This is a line with a touch screen HMI machine. The language used is English - Vietnamese.

Automatic film tension adjustment: Max 250%

Load capacity: 1500kg

Maximum pallet size: L1200 x W1200 x H2000 mm

Turntable speed: 3-12 revolutions per minute

Turntable size: 1650 mm

Film carriage up/down speed: 1.5 - 5.5 meters per minute

Film wrapping speed: 20 - 40 pallets per hour (pallet size 1x1.2x1.2 m with 2 wraps)

Voltage: 1 Phase 220V/50Hz

Power: 1.5 kW

Machine weight: 480 Kg

Machine dimensions: L2800 x W1650 x H2480 mm

Turntable height: 85 mm

Machine environmental temperature: 0 ~ 40 degrees Celsius

Noise level: 75dB

Humidity: less than or equal to 70% (Relative Humidity)

Film roll dimensions:

Film roll width: 500 mm

Film roll diameter: Maximum 250 mm

Film roll core diameter: 76 mm

Film roll weight: Maximum 12kg

Film roll thickness used in the range: 17~25 (Microns)
