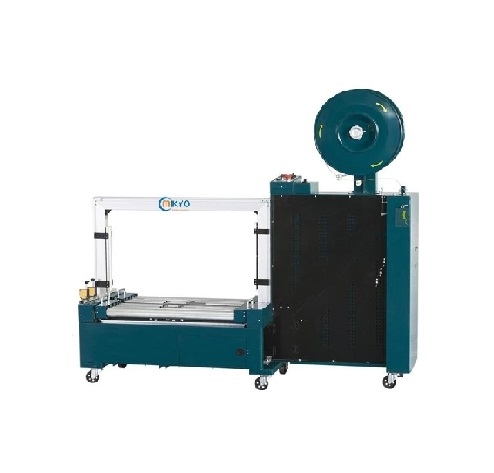

Mikyo MH-102B ເຄື່ອງສາຍອັດຕະໂນມັດ (18path/min)
Power source: 380V 50/60HZ 3Phase 1.27KW,10A
Packing speed:≤18path/min
Strapping force: 0-90kg（adjustable)
Supporting valu: 100kgs
Hot-adhering position: bottom
Table height: 450mm (It’s possible to customize the height)
Arch
Standard size: width 800mm x height 600mm (inner size)
Material: aluminum alloy
(It's possible to customize the size)
Applicable PP strap
With (9,10,11,12,13,15)mm, thickness (0,6~1,0)mm (to be specified)
Stretching Resistance: Max 150kg
Applicable PP strap spool
W: 160mm
Inner dia: 200mm~210mm, out dia: 400mm~500mm
Packing type:
Parallel 1~2 packing strips
In type of photoelectric control, manul operation
Dimensions: L1900XW620XH1750mm
Packing measurements: L2000×W800×H1420mm(2.304CBM, dis-assembled arch)
Weight: N.W: 340kg G.W:380kg
Noise: ≤75dB（A）
Environment condition: Humidity ≤90%, temperature 0-40℃
Bottom adhesion: Surface≥90%, deviation of position≤2mm
Electrical Configuration
PLC Control: Siemens
PLC Contactor: Schneider
Button: Schneider
Relay: Schneider
Motor: MEIWA
Sensor Swith & Proximity Switch: P+F or Foteck
