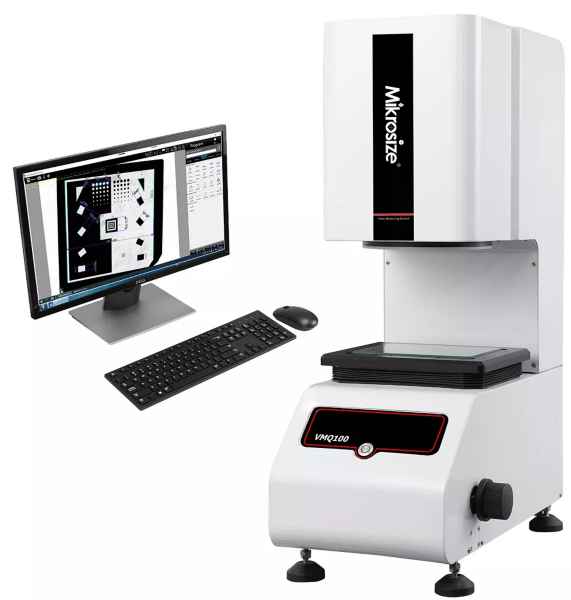

Mikrosize VMQ-100 ລະບົບການວັດແທກວິດີໂອທັນທີ (99p/s, AC100-240V 50/60Hz)
Instrument Dimensions: 480×240×680
Instrument Weight: 30KG
Working Stage Capacity: 3KG
Software: Fom2d
Camera: 5 millions Pixels CCD Industrial Camera
Lens: Double Telecentric Lens
Illumination: Program controlled parallel light or telecentric parallel light, each section of brightness is controlled independently
Field of view: 30mm~100mm
Focus: Manual
Measuring Accuracy: ±3 µm
Measuring Function: Point, line, circle, multipoint line, multipoint circle, automatic circle, arc, multisection circle, automatic R angle, contour scanning,fifixed point, peak line, circle, etc
Tagging Function: Aligned, vertical, angular, radius / diameter
Geometrical Tolerance: Straightness, roundness, symmetry, profifile, etc
Virtual Structure: Center line, bisector, tangent point, tangent point of circle line,circle center, line center, etc
Automatic Template Matching: Support
Report Function: SPC analysis report ( CPK, CA , PPK, CP, PP )
Software Customization:CAD import profifile analysis, automatic management link,APP management application
Measuring Quantity: 99 pieces/second
Template quantity: Unlimited
Power: AC100-240V 50/60Hz
Working Environment: Temperature 23 C ± 2 C humidity 20% to 80% RH
Packing List
Machine Mainframe
Dell 24 inch Computer
Mikrosiz Measuring Software
Telecentric Lens
High Pixel Camera
Surface Lighting
Calibration Block
Power Line
Product Certifificate
