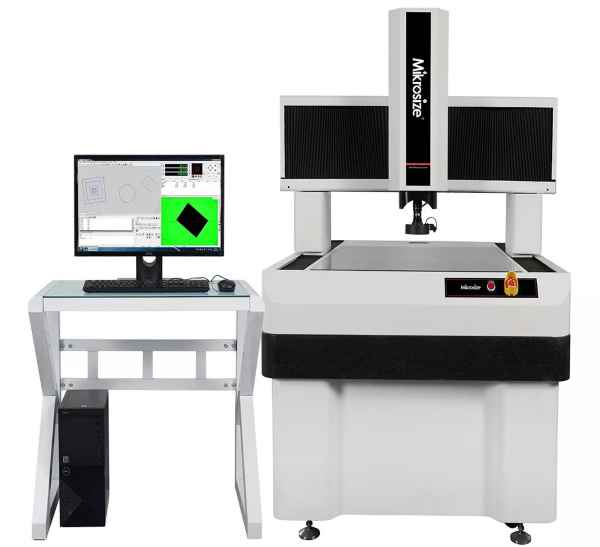

Mikrosize VMG-1012P ລະບົບການວັດແທກວິດີໂອ (3D,1000x1200x200mm)
Stage Travel(mm)X/Y/Z: 1000x1200x200
Machine Dimensions(mm): 2090x1562x1620
Accuracy(µm): E1(x/y)=(3.5+L/100) , L=length to be measure in mm
Load weight of worktable: 30kg
Net Weight(KG): 1200
Optical system
Image Sensor: 1/2" color CCD camera
Objective: Auto Coaxial Zoom Lens
Magnification: Optic:0.7x~4.5x, Video:20x~148x
Working Distance: 92mm(standard)
Object field of view: 11.1~1.7mm(standard)
Resolution: 0.5µm
Driving System: X,Y,Z-axis Screw Driving
Movement Control: CNC-servo Movement Control System
Speed: X.Y-axis: 300(mm/s) / Z-axis: 50(mm/s)
Illumination
Contour: Adjustable 256-grade LED Cold illumination
Surface :Adjustable 256-grades 5-Ring & 8-Division LED Cold illumination
Measuring Software: Microsize
Working Environment
Temperature: 20℃±2℃, Temperature Variation<2℃/hr,Humidity:30~80%
Vibration: <0.002g,15Hz
Power Source: AC 100~220V 50/60HZ 10A
VMG Automatic Gantry CNC Video Measuring System Standard Delivery:
Measuring Software
CCD Camera/Video Capture Card
Motorized Coaxial Zoom Lens
Mainframe/Dell PC System
Scale Transfer /Movement Control Card
8 –Division LED Illumination
Linear Scale/Calibration Block
100mm Length Block(3D)
Renishaw Probe (3D)
