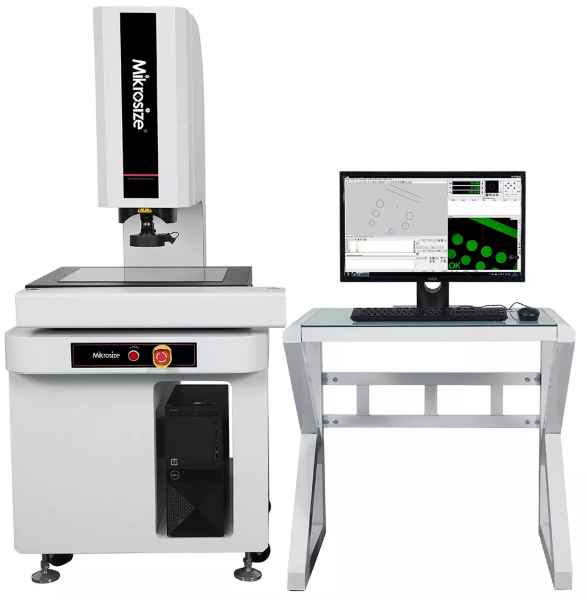

Mikrosize VMC-5040 ເຄື່ອງວັດແທກວິດີໂອ CNC (2.5D, XY 500x400mm)
ຜູ້ຜະລິດ: Mikrosize Model: VMC-5040 - ຕິດຕໍ່ພົວພັນ
X,Y-axis Travel: 500x400mm
Z-axis Travel: 200mm
Dimensions(mm): 1300x750x1000
Max load Capacity: 25Kg
Net Weight: 360Kg
X/Y/Z 3-axis Linear Scale(2.5D): Resolution:0.5um
Accuracy(um): E1(x/y)=2.5+L/100
Repeatability: ±2um
Movement System: X,Y,Z-axis:Screw Rod
Movement Control: CNC Auto Servo Movement Control
Video System
TEO 1/2" color CCD camera
Manual Coaxial Zoom Lens
Optical Magnification:0.7-4.5x; Video Magnification:20-148x
Working Distance(Standard): 92mm
Object View(Standard): 11.1~1.7mm
Speed(mm/s): X,Y-axis:200 Z-axis:50
Illumination
Contour: Adjustable 256-grade LED Parallel illumination
Surface: Adjustable 256-grades 5-Ring & 8-Division LED Cold illumination
3D Measuerment: 3D Module and UK Renishaw Touch Probe
Measuring Software: Microsize
Working Environment: Temperature: 20℃±2℃, Temperature Variation<2℃/hr,Humidity:30~80%
Power Source: AC 100~220V 50/60HZ 10A
VMC CNC Automatic Video Measuring System Standard Delivery
Measuring Software
CCD Camera/Video Capture Card
Manual Coaxial Zoom Lens
Mainframe/Dell PC System
Scale Transfer /Movement Control Card
48 –Division LED Illumination
Linear Scale/Calibration Block
100mm Length Block(3D)
Renishaw Probe MCP-K2(3D)
