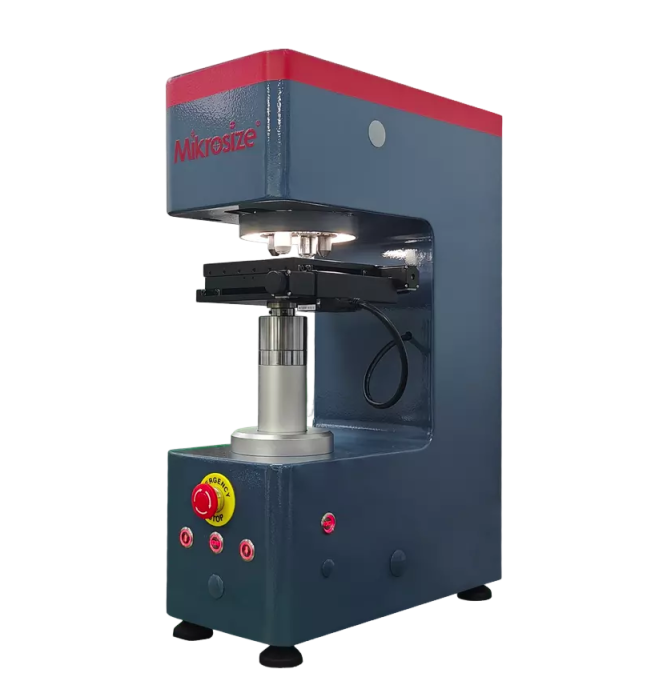

Mikrosize uVicky-10AI ເຄື່ອງທົດສອບຄວາມແຮງຮອງ Vickers ອັດຕະໂນມັດອັນສະຫຼຸບສົມບູນ ອັດສະລາຍ (0.3-10 kgf)
Load range (main loads): 0.3-10 kgf
Auto change load: Yes
Vickers capability: Yes
Brinell capability(Optional): yes
STAGES AND TURRETS
XY-stage: Automatic
XY-stage Size (mm): 150x150
XY-stage travel (Max size: 200 x200mm): 50x50
XY-Stage repeatability (um): 1
Test height (mm): 160
Test throat (mm): 170
Motorized Z-axis: Yes
Z-axis step length（um): 0.08
Motorized turret: Yes
Turret positions: 3 (6)
Weight(kg): 45
Size, L*W*H(mm) (not include PC): 450 * 205 * 650
CAMERAS AND OPTICS
Objective Lens: 10X, 20X (2.5X, 5X, 40X, 50X)
Evaluation camera resolution: 12 MP
Panorama camera: Optional
Overview cam sample max. size(mm): 40 * 30
Panorama camera resolution: 12 MP
Auto illumination: Yes
Stage illumination: Optional
Laser guider: Optional
Standard Delivery：
Machine Mainframe: uVision-V: 1 set
Computer: 1 set
2KG Weights: 1 pc
Auto XY Stage: 1 pc
Adjusting Screw: 4 pc
Vickers Hardness Blocks: 3 pcs
Spare Fuse (2A): 2 pcs
Gradienter: 1 pc
Anti-dust Cover: 1 pc
Powder Cord: 1 pc
Hex Wrench: 2.5mm: 1 pc
USB Cable: 1 pc
Flat-jaw Clamping Stage: 1 pc
Thin Sheet Clamping Stage: 1 pc
Fine Wire Clamping Stage: 1 pc
Universal Tilting Clamping: 1 pc
4-position Sample Holder: 1 pc
Product Certificate: 1 copy
Warranty Card: 1 copy
Instruction Manual: 1 copy
