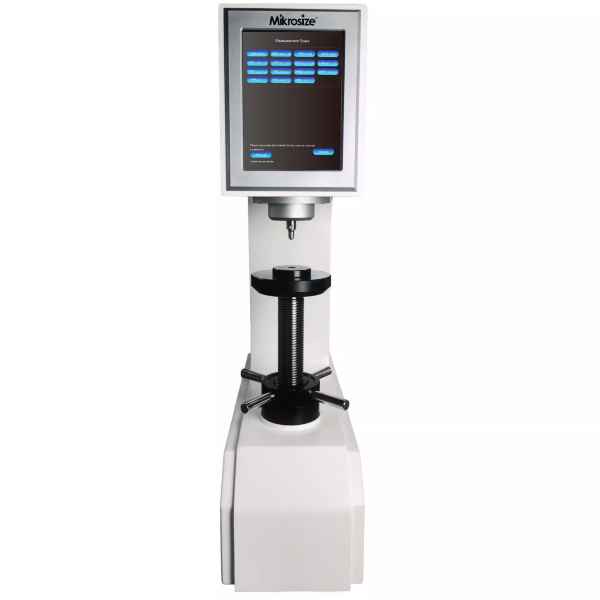

Mikrosize uRocky-45CL ເຄື່ອງທົດສອບຄວາມແຂງຂອງ Rockwell ແບບດິຈິຕອລ (3.0Kgf/29.4N, 45kgf/441.3N, < 1%)
Loading Method: Closed loop
Initial Test Torce: 3.0Kgf(29.4N)
Main Test Torce: 15kgf(147.1N) 30kgf(294.2N) 45kgf(441.3N)
Hardness Scale: HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y
Conversion scale: HRA, HRB, HRC, HRD, HRE, HRF, HV, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Rockwell Test Range: HR15N:70-94 HR30N:42-86 HR45N:20-77, HR15T:67-93 HR30T:29-82 HR45TW:10-72
Executive Standards: BSEN 6508, ISO 6508, ASTM E18, GB/T230
Dwell time: 0-99s
Hardness Resolution: 0.1 HR
Error of Test Force: < 1%
Data Reading: LCD Touch Screen
Data Output: USB-flash in Excel Format
Conversion Scale: Rockwell, Brinell and Vickers
Test Height: 220mm
Test Throat: 200mm
Machine Dimensions: 560 * 220 * 750 mm
Net Weight: 70kg
Gross Weight & Packing SizeL: 780x470x940mm / 90kg
Power Supply: AC220 + 5%, 50 ~ 60 HZ
Packing list
Diamond Rockwell Indenter: 1
1.5875 mm Ball Indenter: 1
Regulating Screw: 4
150mm Test Anvil: 1
HR15N Hardness Block: 1
55mm Test Anvil: 1
HR30N Hardness Block: 1
40mm V-type Test Anvil: 1
HR30T Hardness Block: 1
Dust-proof Plastic Cover: 1
Power Line: 1
Instruction Manual: 1 Copy
USB Flash Disk: 1
Product Certificate: 1 Copy
Touch Pen: 1
2A Fuse: 2
