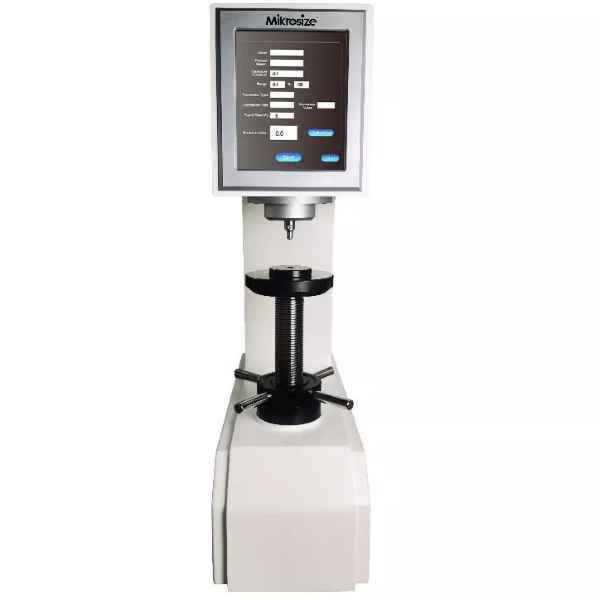

Mikrosize uRocky-150CL ເຄື່ອງທົດສອບຄວາມແຂງຂອງດິຈິຕອລ Rockwell (150kgf/ 1471N)
Loading Method: Closed Loop
Initial Test Force: 10 Kgf (98.07N)
Main Test Force: 60kgf(588N) 100kgf(980N) 150kgf(1471N)
Rockwell Hardness Scale: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV
Rockwell Test Range: HRA:20-95, HRB:20-100, HRC:20-70, HRD:40-77, HRE:70-100, HRF:60-100, HRG:30-94, HRH:80-100, HRK:40-100, HRL:100-120, HRM:85-115, HRR:114-125
Executive Standards: BSEN 6508, ISO 6508, ASTM E18, GB/T230
Dwell Time: 0-99s
Hardness Resolution: 0.1 HR
Error of Test Force: < 1%
Data Output: LCD Touch Screen
Data Save: The measured values are saved in USB flash in Excel format
Conversion scale: Brinell,Vickers, Superficial Rockwell
Test Height: 200mm
Test Throat: 200mm
Machine Dimension: 560 * 220 * 800 mm
Net Weight: 70kg
Gross Weight &Package: 90kg /780x470x940mm
Power Supply: AC220 + 5%, 50 ~ 60 hz
Packing List
Instrument Mainframe:1pc
Diamond Rockwell Indentor: 1pc
1.5875mm Ball Indentor: 1pc
150mm Flat Test Anvil: 1pc
55mm Flat Test Anvil: 1pc
40mm V-shape Test Anvil: 1pc
HRC Hardness Block(60~70): 1pc
HRC Hardness Block(20~30): 1pc
HRB Hardness Block(80~100): 1pc
U-flash: 1pc
Touch Pen: 1pc
Spare Fuse (2A): 1pc
Dust Cover: 1pc
