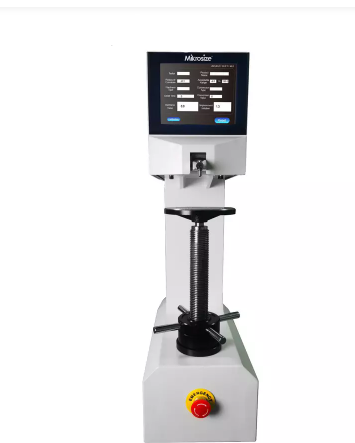

Mikrosize uRocky-150/45DN ເຄື່ອງທົດສອບຄວາມແຂງຂອງ Dolphin Nose Twin Rockwell (Dolphin nose twin, 10Kgf/ 98.07N, 3.0kgf/ 29.4N)
Initial Test force (error < 0.5%): Rockwell: 10Kgf (98.07N)/ Superficial Rockwell: 3.0kgf (29.4N)
Total Test force (error < 0.5%):
Rockwell: 60kgf(588N)/ 100kgf(980N) / 150kgf(1471N)
Superficial Rockwell: 15kgf (147.1N) / 30kgf (294.2N) / 45kgf (441.3N);
Hardness Scale:
Rockwell: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV
Superficial Rockwell: 15N, 15T, 15W, 15X, 15Y, 30N, 30T, 30W, 30X, 30Y, 45N, 45T, 45W, 45X, 45Y
Conversion Scale: HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N,HR15T, HR30T, HR45T
Hardness Range:
Rockwell: HRA: 20-88, HRB: 20-100, HRC: 20-70, HRD: 40-77, HRE: 70-100, HRF:60-100, HRG: 30-94, HRH: 80-100, HRK:40-100, HRL:100-120, HRM: 85-115, HRR: 114-125
Superficial Rockwell: HR15N: 70-94, HR30N: 42-86, HR45N: 20-77, HR15T: 67-93, HR30T: 29-82, HR45T: 10-72
Executive Standards: BSEN 6508, ISO 6508, ASTM E18, GB/T230
Dwell time: 0-99s
Hardness resolution: 0.1 HR
Data Display: Touch LCD
Data Save: The measured values are saved on USB flash drive in Excel format
Test Height: 300mm
Test Throat: 250mm
Machine Dimension: 720 * 260 * 840 mm
Net Weight: 80kg
Power Supply: AC220 + 5%, 50 ~ 60 hz
Packing list
Diamond Rockwell Indentor: 1
1.5875mm Ball Indentor: 1
Regulating Screw: 4
150mm Test Anvil: 1
Hardness Block (HRC high and low, HRB): 3
55mm Test Anvil: 1
Hardness Block (HR15、HR30N、HR30T): 3
40mm V-type Test Anvil: 1
2A Fuse: 2
V-shaped Test Anvil: 1
USB Flash Disk: 1
Dust-proof Plastic Cover: 1
Power Line: 1
Product Certificate: 1
Touch Pen: 1
Instruction Manual: 1
