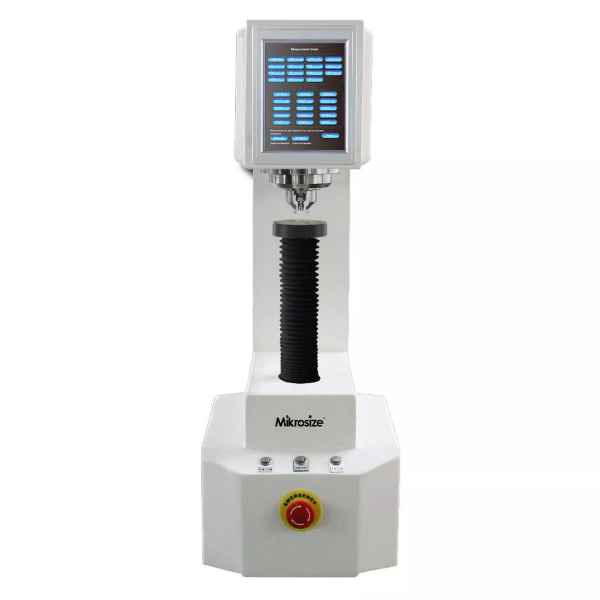

Mikrosize uRocky-150/45A ເຄື່ອງກວດຄວາມແຂງແບບດິຈິຕອລອັດຕະໂນມັດ Twin Rockwell (Twin, 10 Kgf /98.07N, 3.0kgf/29.4N, AC220+5%, 50~60 Hz)
Initial Test Force(error < 0.5%):
Rockwell: 10 Kgf (98.07N)
Superficial Rockwell: 3.0kgf(29.4N)
Main Test Force(error < 0.5%):
15kgf(147.1N), 30kgf(249.2N), 45kgf(441.3N)
60kgf(588N), 100kgf(980N), 150kgf(1471N)
Hardness Scale:
HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV
15N, 15T, 15W, 15X, 15Y, 30N, 30T, 30W, 30X, 30Y, 45N, 45T, 45W, 45X, 45Y
Conversion scale: HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Hardness Test Range:
HRA:20-88, HRB:20-100, HRC:20-70, HRD:40-77, HRE:70-100, HRF:60-100, HRG:30-94, HRH:80-100, HRK:40-100, HRL: 100-120 HRM: 85-115, HRR: 114-125
HR15N：70-94, HR30N：42-86, HR45N：20-77, HR15T：67-93, HR30T：29-82, HR45T：1-72
Executive Standards: BSEN 6508, ISO 6508, ASTM E18, GB/T230, JJG112
Dwell Time: 0-99s
Hardness Resolution: 0.1 HR
Hardness Reading: LCD Touch Screen
Data Output: USB Flash Disk
Data Save: The measured values are saved in USB flash in Excel format
Conversion scale: Brinell, Vickers,Rockwell
Test Height: 300mm
Test Throat: 200mm
Machine Dimension: 560 * 280 * 850 mm
Net Weight: 80kg
Power Supply: AC220 + 5%, 50 ~ 60 hz
Packing List
Diamond Rockwell Indentor: 1
1.5875mm Ball Indentor: 1
Regulating Screw: 4
150mm Test Anvil: 1
Hardness Block (HRC high and low、HRB): 3
55mm Test Anvil: 1
Hardness Block (HR15、HR30N、HR30T): 3
40mm V-type Test Anvil: 1
2A Fuse: 2
V-shaped Test Anvil: 1
USB Flash Disk: 1
Dust-proof Plastic Cover: 1
Power Line: 1
Product Certificate: 1
Touch Pen: 1
Instruction Manual: 1
