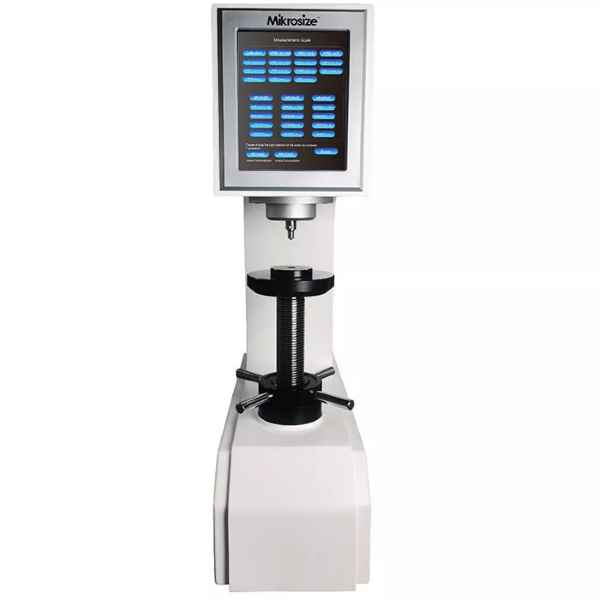

Mikrosize uRocky-150/45 ເຄື່ອງທົດສອບຄວາມແຂງຂອງ Digital Twin Rockwell (150kgf/1471N, 45kgf/441.3N, < 1%)
Rockwell Initial Test force: 10Kgf(98.07N)
Superficial Rockwell Initial Test Force: 3.0kgf(29.4N)
Rockwell Total Test force: 60kgf(588N) 100kgf(980N) 150kgf(1471N)
Superficial Rockwell Total Test Force: 15kgf(147.1N) 30kgf(249.2N) 45kgf(441.3N)
Rockwell Hardness Scale: HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK、 HRL、HRM、HRR、HRP、HRS、HRV
Superficial Rockwell Hardness Scale: 15N、15TW、15W、15X、15Y、30N、30TW、30W、30X、30Y、45N、45TW、45W、45X、45Y
Hardness Conversion Scale: HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW
Hardness Testing Range: HRA:20-88、HRB:20-100 、HRC:20-70 、HRD:40-77 、HRE:70-100 、HRF:60-100 、HRG:30-94、HRH:80-100、HRK:40-100、HRL:100-120 HRM:85-115、 HRR:114-125 HR15N:70-94 HR30N:42-86 HR45N:20-77 HR15TW:67-93 HR30TW:29-82 HR45TW:10-72
Indenter: Diamond Rockwell Indenter, ф1.588mmBall Indenter
Loading Method: Automatic (Loading/Dwell/Unloading)
Executive Standards: BSEN 6508, ISO 6508, ASTM E18, GB/T230
Dwell time: 0-99s
Hardness resolution: 0.1 HR
Error of Test Force: < 1%
Hardness reading: Touch screen LCD display
Data Output: USB flash disk
Data Save: The measured values are saved on USB flash drive in Excel format
Conversion Scale: Rockwell, Brinell and Vickers
Test Height: 220mm
Test Throat: 200mm
Machine Dimension: 560 * 220 * 800 mm
Net Weight: 75kg
Power Supply: AC220 + 5%, 50 ~ 60 hz
Packing List
Diamond Rockwell Indentor: 1
1.5875mm Ball Indentor: 1
Hardness Block (HRC high and low、HRB、HR15N、HR30N、HR30T): 6
Large, Medium Test Anvil: Each 1
Spare Fuse (2A): 2
V-shaped Test Anvil: 1
USB Disk: 1
Dustproof Plastic Cover: 1
Power line: 1
Product Qualification Certificate: 1
Touch pen: 1
Instruction Manual: 1
