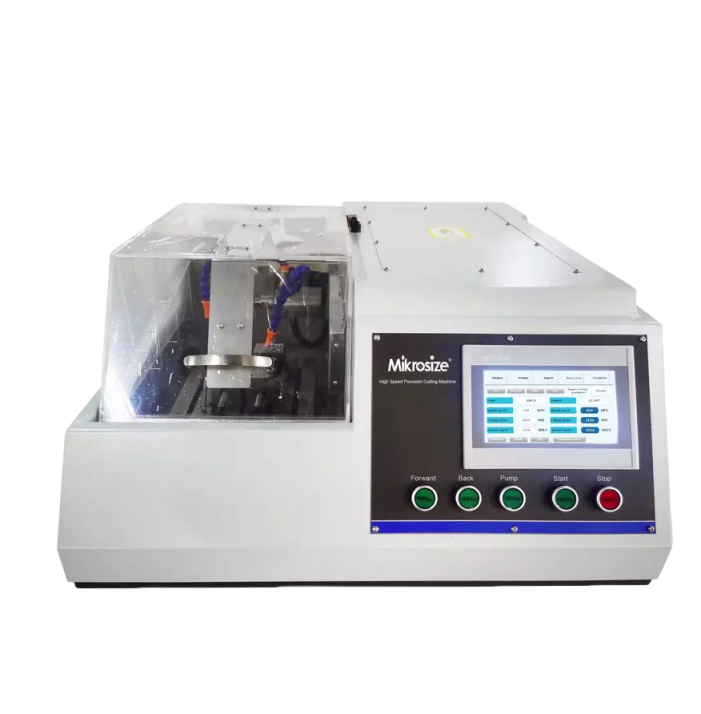

Mikrosize uCut-60 ມີດຕັດຄວາມແມ່ນຍ້ອນທາງແມງ (ຄວາມໄວສູງ) (500-3000r/min; 0.01- 3 mm/s, Ø200 x 32 x0. 9mm)
Cut-off Wheel: Standard Size φ200 x 32 x0. 9mm, Diomond/CBN/Resin
Spindle Speed: 500-3000r/min (Optional 500-5000r/min) Adjustable
Feeding Speed: 0.01- 3 mm/s
Manual Feeding Speed: 0-5mm/s
Backward Speed: 0-5mm/s
Impact Cutting Distance: 0.1- 2 mm
Cutting Stroke (Y-axis): 200mm
X-stage Movement(uCut-60X): Precision:0.01mm, Range:40mm
Maximum Cutting diameter: Φ60 mm
Cutting Table Size: 216x240mm(X*Y)
Maximum Clamping Length of Fixture: 150mm
Maximum Clamping Width of Fixture: 215mm
Servo Motor: 1.5 kw
Usage Method Data: 12 kinds can be Stored
Power supply: AC220V 50HZ
Mainframe Dimensions: 750 * 870 * 455 mm
Net Weight: 126KG
Standard delivery：
Open end spanner (22-24, 17-19): Each 1
6mm inner hexagon wrench: 1
5mm inner hexagon wrench: 1
Power cord: 1
Φ200mm Diamond Cut-off Wheel: 1
Cooling system (including water tank, water pump, water inlet pipe and drainage pipe): 1 set
1L Cutting fluid: 1 bottle
Hose hoops 13 to 19: 2
Hose hoops 40-63: 2
External Water Tank: 1
