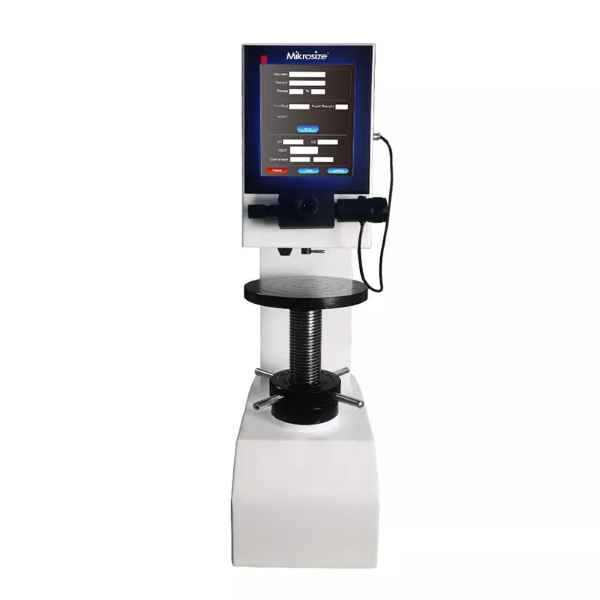

Mikrosize uBrin-3000M-M ເຄື່ອງທົດສອບຄວາມແຂງແບບດິຈິຕອນ Brinell (Manual, 3000kgf/29420N, 0.5%)
Turret: Manual
Brinell Scale: HBW2.5/62.5、HBW2.5/187.5、HBW5/62.5、HBW5/125、HBW5/250、 HBW5/750、HBW10/100、HBW10/250、HBW10/500、HBW10/1000、 HBW10/1500、HBW10/3000
Test Force: 62.5kgf(612.9N)、100kgf(980.7N)、125kgf(1226N)、187.5kgf(1839N)、250kgf(2452N)、500kgf(4903N)、750kgf(7355N) 1000kgf(9807N)、1500kgf(14710N)、3000kgf(29420N)
Test Force Accuracy: 0.1%
Test Force Precision: 62.5～250kgf≤1% 500～3000kgf≤0.5%
Test Range: 8-650HBW
Camera(uBrin-3000M-V): Industrial 5 Millions Pixels
Eyepiece: 20X (Optional: 10X, 15X, 30X)
Indention Measuring: Manual
Data Output: LCD/USB
Calibration Method: Standard Block/Length Scale
Computer(uBrin-3000M-V): Industrial 15 "- resistance screen Core i5 quad core/4G/64G/wifi win10
Measuring Device Resolution: 0.1um
Hardness Resolution: 0.1HBW
Dwell Time: 0～99S
Data Storage: Results Saved in U disk as Excel Format
Test Height: 200mm(Customized Optional)
Test Throat: 155mm
Executive Standard: BSEN 6506, ISO 6506, ASTM E10, GB/T231, JIS Z2243
Machine Dimension: 550×210×800mm
Weight: 110kg
Power Supply: AC220+5%,50～60Hz
Packing List
20X Measuring Eyepiece: 1pc
Diameter 2.5mm Hard Alloy Ball Indenter: 1pc
Diameter 5mm Hard Alloy Ball Indenter: 1 pc
Diameter 10mm Hard Alloy Ball Indenter: 1 pc
U-flash Disk/Touch Pen: 1 pc
Power Cord: 1 pc
Φ200mm Test Anvil: 1 pc
Φ60mm Test Anvil: 1 pc
Φ80mm V-shape Test Anvil: 1 pc
Standard Hardness Block HBW10/3000: Each 1
Standard Hardness Block HBW10/1000: 1pc
Standard Hardness Block HBW2.5/187.5: 1pc
Anti-dust Cover: 1pc
Spare Fuse (2A): 2pcs
Instruction Manual: 1 copy
Product Certificate: 1 copy
Warranty Card: 1 copy
Accessories Case: 1pc
