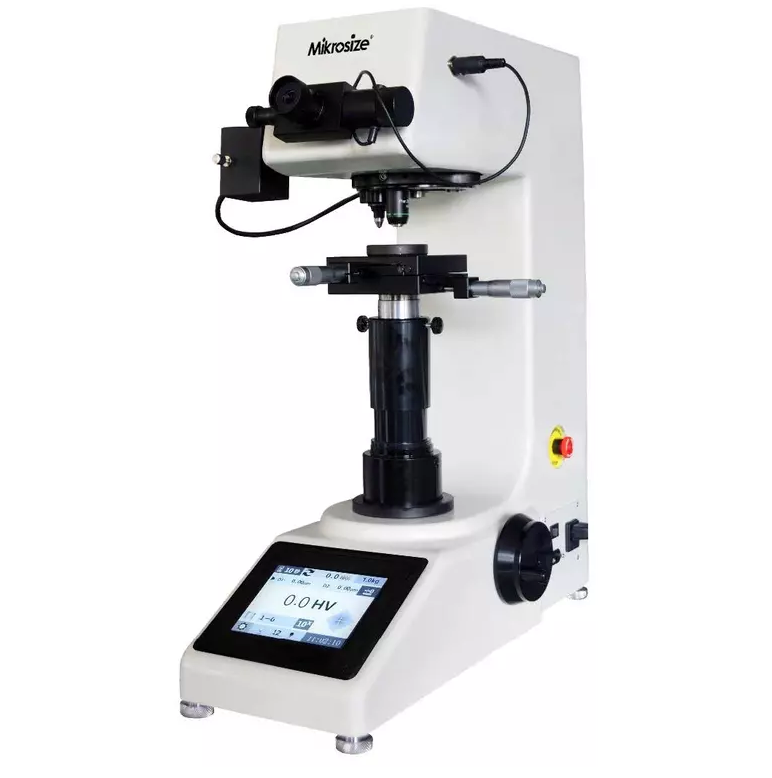

Mikrosize MVicky-10T ອຸປະກອນທົດສອບຄວາມແຮງຮອງຂອງວິກເຄີສດ້ວຍຈໍສະແດງສະເລ່ຍສະຕິ (1HV~2967HV, 0.3kgf~10kgf)
Test Force(10Z) kgf: 0.3kgf, 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf
N: 2.94N, 4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N
Test Mode: HV/HK
Test Range: 1HV~2967HV
Hardness Resolution: 0.1HV
Loading Method: Automatic (Loading/Dwell/Unloading)
Turret Rotating: Automatic
Data Output: Built-in Printer, RS232 Interface
Hardness Reading:
Color Touch Screen
Data can be saved
Conversion Scale (MHV-10Z/50Z): HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW
Eyepiece: 10×Digital Measuring Eyepiece
Objective:
100×, 400×(10Z)
100×, 200×(50Z)
Effective Field of View: 10×: 800μm, 40×: 200μm
Min. Measuring Unit: 110×: 0.25μm, 40×: 0.06μm
Dwell Time: 0~60s
Light Source: Halogen Lamp
X-Y Test Table: Size:100×100mm;Travel:25×25mm;Resolution: 0.01mm
Test Height: 170mm
Test Throat: 130mm
Power Supply: AC220V, 50Hz
Executive Standard: ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2
Dimension
Machine: 530×280×630mm,
Package: 620×450×760mm
Net Weight: 35kg, Gross Weight: 47kg
Standard Delivery:
Instrument Main Body: 1 set
Diamond Vickers Indenter: 1 pc
X-Y test Stage: 1 pc
Horizontal Regulating Screw: 4 pcs
Fuse1A: 2 pcs
Inner Hexagon Spanner 2.5mm: 1 pc
Hardness Block 700~800 HV1: 1 pc
Anti-dust Cover: 1 pc
10×Digital Measuring Eyepiece: 1 pc
10×，20x 40× Objective: each 1 pc
Power Cable :1 pc
Level: 1 pc
Halogen Lamp12V、15~20W: 1 pc
Screw Driver: 1 pc
Hardness Block 700~800 HV10: 1 pc
Usage Instruction Manual: 1 copy
