Testing Force
Kgf: 10、25、50、100、200、300、500、1000
N: 0.098、0.246、0.49、0.98、1.96、2.94、4.90、9.80
Testing Range: 1HV~2967HV
Lens& Indenter Switch: Auto-turret
Loading Control: Automatic (Loading, Dwell, Unloading)
Magnification of Microscope: Observation:10x; Measurement:20x
Digital Eyepiece: Magnification:10x
Objective: Magnification:10x,20x,40x
Min.Test Unit: 0.0625 μm, 0.125 μm, 0.25 μm
Dwell Time: Adjustable 0~60s
Digital Camera Pixel: 1.3 million
Hardness Indication: 1HV/Computer Display
Illumination: Halogen light-source
Max. Height of Specimen: 180mm
Instrument Throat: 130mm
Power Supply: AC220V/50Hz;110V/60Hz
Dimension(LxWxH): 560 x335 x635mm
Packing Dimension: 630 x460 x710mm
Gross/Net Weight: 60Kg/45Kg
Execution Standard: GB/T4340.2, EN-ISO6507, ASTME10-08, ASTME-384

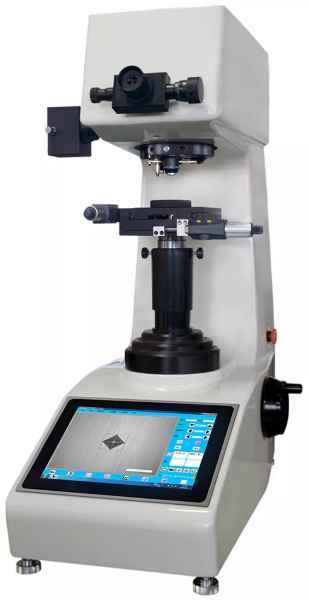

MVI-1000A Micro Vickers Hardness Tester Standard Packing List:
Vickers Indenter
Vickers Hardness Block
Accessories Box
Built-in 10x Objective
10x Digital Eyepiece
Anti-dust Cover
Built-in 20x Objective
V-Shape Anvil/Mini-printer
Level Screw/Fuse
Built-in 40x Objective
Halogen Lamp
Instrument Manua/Power Cable
Digital X-Y Test Stage
Big Test Anvil
Screwdriver/Spanner
