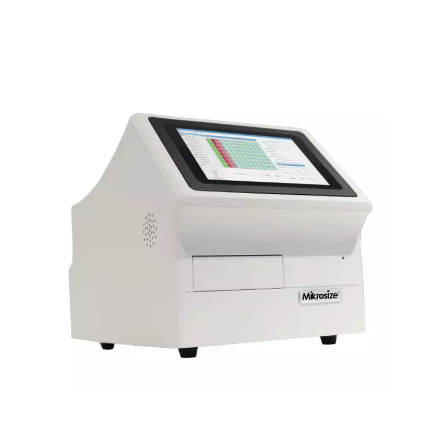

Mikrosize MS-EL10D Elisa Microplate Reader (340~850nm, 0.000~3.000Abs)

Measurement Channel: Vertical 8 optical channels

Plate Type: 96-well microplate

Wavelength Range: 340~850nm

Filter: Standard 5 wavelengths of 340, 405, 450, 492, 630nm; Optional: Up to 10 wavelengths

Reading Range: 0.000~3.000Abs

Linear Range: 0.000~4.500Abs

Resolution: 0.0001Abs

Repeatability: CV≤1.0%

Stability: CV≤0.2%

Sensitivity: ≥0.01 mg/L

Channel Difference: ≤±0.003Abs

Vibration Plate Function: 5 kinds of vibration plate function, adjustable 0~255s

Incubation Function: Time Range: 0~60min; Temp. Range: RT +4℃~50℃

Software (Standard):

     Detection Mode: Single/double wavelength

     Qualitative: Open CUT-OFF decision formula, supporting the input of judgment condition, validity condition input, grey area setting and other functions

     Quantitative: Support linear, Semi-log, natural logarithm, log-log, point-to-point. four-parameter equation and other quantitative analysis fitting algorithms

Others:

     Display: 10.1 inch color touch capacitive screen

     Operating Mode: Touch screen operation, equipped with capacitive stylus, support for external keyboard and mouse

     Printer(Optional): Support external USB, RJ45 network port and other universal interface printer (A4 printer can be optional)

     Interface: USB2.0*4, RJ45 network port *1, RS-232*1

Power Supply: AC100~240V, 50/60Hz

Instrument Size(W*D*H): 495*340*370mm

Package Size(W*D*H): 610*440*475mm

Net/Gross Weight: 12/14kg

Features:

10.1-inch large touch screen operation.

High precision and accurate result.

Software: Single wavelength and double wavelengths detection methods
