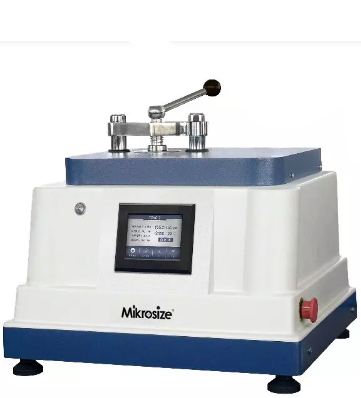

Mikrosize MPress-1A Metallographic Auto Mounting Press (Single, 520×480×520mm)
Mounting Head: Single
Mould Diameter: Ф25mm，Ф30mm，Ф40mm (Choose one)
Cavity Height: 108mm, effective 60mm
Heating Power: Ф25mm/Ф30mm 1.2kW; Ф40mm 1.6kW
Pressure: 150bar (equivalent to 15Mpa, 150kgf/cm2, not adjustable)
Heating Temperature: 50~180℃ (The default is 120℃)
Hold Time: Adjustable (The default is Ф40mm 1min30s, Ф25mm/Ф30mm 1min)
Cooling Method: External water source cooling
Power Supply: 220V, 50Hz，10A
Machine Dimensions: 520×480×520mm
Net Weight: 60Kg
Packing List
Machine Mainframe: 1 set
Rotary Handle: 1 pc
Upper Mould Block: 1 pc
Pump Breathing Cap: 1 pc
Water Inlet Pipe: 1 pc
Water Outlet Pipe: Ф10mm: 1 pc
Water Inlet Filter Screen: 1 pc
Hoop: 1 pc
Bakelite Powder: 500g: 1 bottle
Measuring Cup: 1 pc
Funnel: 1 pc
Usage Instruction Manual: 1 copy
