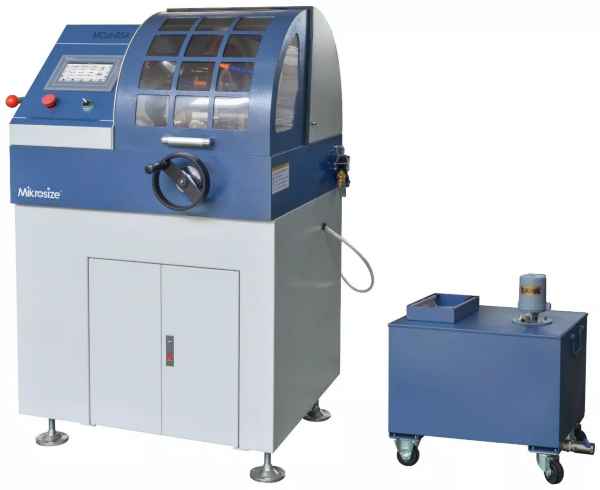

Mikrosize MCut-65A ເຄື່ອງຕັດໂລຫະອັດຕະໂນມັດ (Φ300×2×Φ32mm,2kW)
Cutting Method: Manual/Automatic, Table feeding along Y axis
Cutting Mode: Continuous Cutting, Pulse Cutting
Feeding Speed: Manual / Automatic 1~240mm/min
Cut-off Wheel: Φ300×2×Φ32mm
Max. Cutting Capacity: Φ65mm
Y Axis Travel: 235mm
Z Axis Travel: 35mm
Spindle Speed: 500~3000r/min
Motor Power: 2kW
Cutting Table: 350×220mm，T-slot 12mm
Clamping Device: Quick Clamp，Jaw height 60mm
Display and Control: 7 inch Touch Screen
Power Supply: 380V, 50Hz，10A, Three-phase Five-wire
Dimensions: 800×760×1370mm
Net Weight: 280kg
Water Tank Capacity: 60L
Pump Flow: 25L/min
Water Tank Dimensions: 565×360×600mm
Water Tank Weight: 27kg
Packing List
Machine Body: 1 set
Water Tank: 1 set
Cutting Disc: Φ300×2×Φ32mm,Resin Cutting Disc: 2 pcs
Cutting Fluid: 3kg: 1 bottle
Spanner: 36mm，14×17mm，24×27mm: each 1 pc
Water Inlet Pipe: Φ20mm: 1 pc
Water Outlet Pipe: Φ48mm: 1 pc
Usage Instruction Manual: 1 copy
