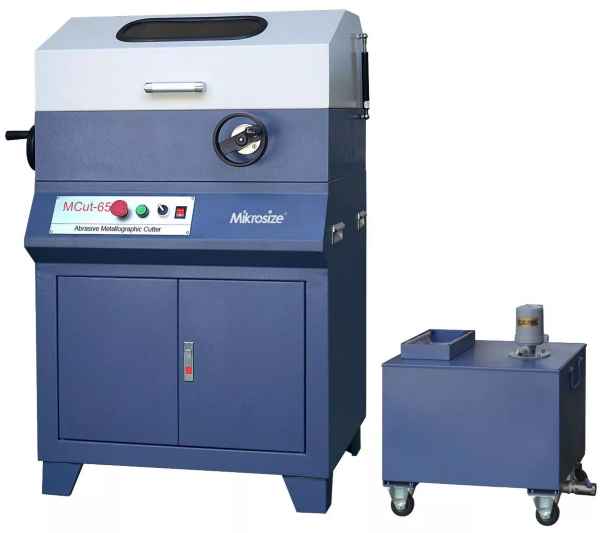

Mikrosize MCut-65 ເຄື່ອງຕັດໂລຫະ Abrasive ຄູ່ມື (Φ250×2×Φ32mm;1,5kW)
Cutting Method: Manual, Y-axis Feeding
Cut-off Wheel: Φ250×2×Φ32mm
Max. Cutting Capacity: 65×65mm
X -axis Travel: 45mm
Y -axis Travel: 270mm
Spindle Speed: 2800r/min
Motor Power: 1.5kW
Cutting Table: 130×190mm，T-slot 12mm
Clamping Fixture: Quick Clamp，Jaw Height 60mm
Power Supply: 380V, 50Hz，6A, Three-phase, Four-wire
Machine Dimensions: 700×520×1110mm
Net Weight: 170kg
Water Tank Capacity: 60L
Pump Flow: 25L/min
Water Tank Dimensions: 565×360×600mm
Water Tank Weight: 27kg
Packing List
Machine Mainframe: 1 set
Water Tank: 1 set
Cut-off Wheel: Φ250×2×Φ32mm Resin cut-off wheel: 1 pc
Cutting Fluid: 3kg: 1 bottle
Spanner: 36mm, 14×17mm, 24×27mm: each 1 pc
Water Inlet Pipe: 1/2 Metal pipe: 1 pc
Water Outlet Pipe: Φ32mm: 1 pc
Usage Instruction Manual: 1 copy
