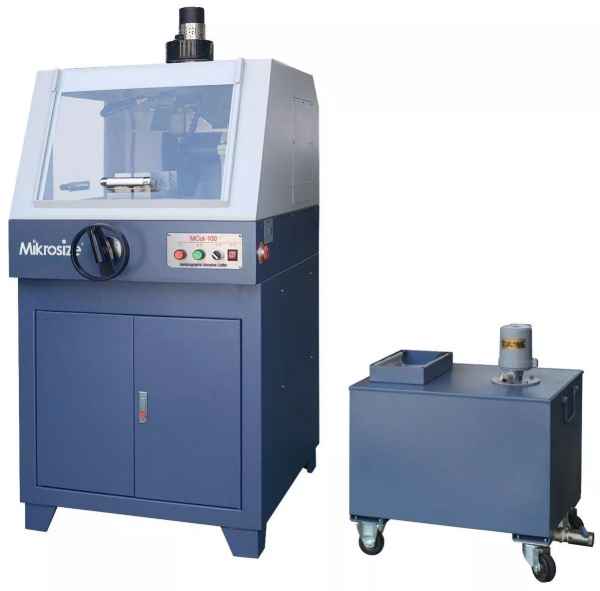

Mikrosize MCut-100 ເຄື່ອງຕັດໂລຫະດ້ວຍມື (2800rpm, 4kW)
Cutting Method: Manual, Y axis Stage Feeding
Cutting Disc: Φ380×2.8×Φ32mm
Max Cutting Capacity: 100×120mm
Y Axis Travel: 265mm
Spindle Speed: 2800r/min
Motor Power: 4kW
Cutting Stage: 250×240mm，T-slot 12mm
Clamping Device: Threaded Clamp，Jaw height 60mm,Opening 120mm
Power Supply: 380V, 50Hz，10A, Three-phase five-wire
Machine Dimensions: 800×900×1640mm
Net Weight: 340kg
Water Tank Capacity: 100L
Pump Flow: 25L/min
Water Tank Dimensions: 460×600×680mm
Water Tank Weight: 36kg
Packing List
Machine Mainframe: 1 set
Water Tank: 1 set
Cutting Disc: Φ380×2.8×Φ32mm,Resin cut-off wheel: 2 pcs
Cutting Fluid: 3kg: 1 bottle
Cleaning Water Gun: Handheld: 1 pc
Wrench: 36mm，46mm: each 1 pc
Inner Hexagon Spanner: 5mm，6mm: each 1 pc
Socket Spanner: 24mm: 1 pc
Water Inlet Pipe: Φ20mm: 1 pc
Water Outlet Pipe: Φ48mm: 1 pc
Fan Pipe: 1 pc
Fan: 1 pc
Usage Instruction Manual: 1 copy
