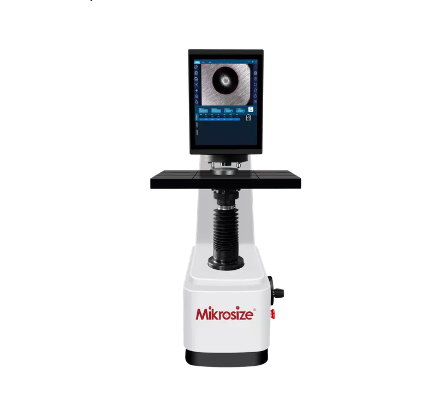

Mikrosize MBrin-3000A Brinell HardnessTester ເຕັມອັດຕະໂນມັດ (29420N/3000kg, HB1/30)

Test force: 29.42N(30kg) 、306.45N（31.25kg）、612.9N（62.5kg）、 980.7N（100kg）、 1226N（125kg）、1839N（187.5kg）、 2452N（250kg）、4903N（500kg）、 7355N（750kg）、 9807N（1000kg）、14710N（1500kg）、29420N（3000kg）

Test scale: HB 10/3000、HB 10/1500、HB 10/1000、HB 5/750、HB 10/500、HBW 10/250、HB5/250、HB 2.5/187.5、 HB 10/125、HB5/125、HB10/100、HB 5/62.5、 HB2.5/62.5、HB5/31.25 、HB2.5/31.25、HB1/30

Measurement range: 8~650HBW

Loading method: Automatic lifting, loading, holding, unloading, and automatic measurement of the workpiece

Maximum allowable height of the specimen: 280mm

Distance from the center of the pressure head to the machine wall: 200mm

Indenter objective conversion: Automatic

Dwell time: 0-99S

Overall dimensions: 230*600*920mm

Weight: 220Kg

Objective lens: 1X、2X

Optical path conversion: Automatic

Indenter  diameter (mm): Φ1、Φ2.5、Φ5、Φ10 Installed on the same turrent

Working mode: One-key Operating, CMOS  Measuring

Brinell Indention Measuring : Automatic

Brinell Indention Measuring Repeatibility: ± 0.8%

Data display method: 12.1 inch industrial grade touch screen

Data output: WORD, EXCELL , Printing Output, Graphics engine display

Data statistics: Hardness Conversion , according to GB Standard , Auto Conversion Brinell-Rockwell-Vickers-Knoob, On-time Display

Light source: LED

Function adjustment: Adjustable illumination brightness

Interface: USB、RJ45LAN、WLAN、RS232

Overall dimensions: 1000×595×350mm

Supply voltage: AC 220V/110V±5%，50~60 Hz

Packing list:

Machine Mainframe: 1pc

Ball indenter φ10、φ5、φ2.5、φ1: 1 Pc each

Objective 1X、2X: 1 Pc each

Accessory  case: 1 Set

Reading  microscope 20X: 1 Pc

V-shaped test anvil: 1 Pc

Big test anvil: 1 Pc

Small test anvil: 1 Pc

Anti-Dust cover: 1 Pc

Hex wrench: 1 Pc

power line: 1 Pc

fuse 2A: 2 Pcs

Brinell hardness block（150～250）HBW3000/10: 1 Pc

Brinell hardness block（150～250）HBW750/5: 1 Pc

Brinell measurement system (Integrated in the host) : 1 Set

Product Qualification Certificate: 1 Set

Product User Manual: 1 Set

Features:

This instrument has 12 levels of test force and 16 types of Brinell hardness test scales, which can be freely selected;

Equipped with 4 sets of ball indenters, all of which can automatically participate in testing;

Equipped with two sets of objective lenses, both of which can participate in the measurement of indentation diameter;

Automatically switch between the objective lens and the indenter based on the selected scale;

Pre set the test force holding time and adjust the strength function of the indentation light source for measurement;

Real time display of loading time;

Display measurement of indentation length, hardness value, measurement frequency, etc;

Select the conversion values between various hardness scales;
