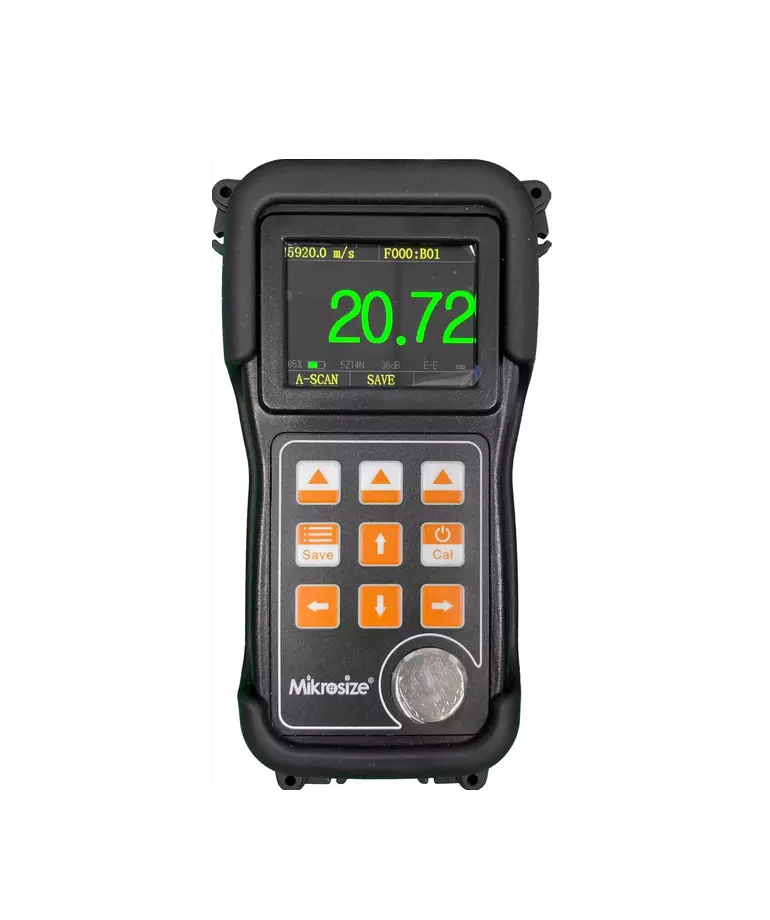

Mikrosize iThick-7000 ເຄື່ອງມວນຄວາມຫວາດຂອງຄວາມຫນາ Ultrasonic (1MHz ~ 20MHz / 0.15 ~ 3200 mm)

Bandwidth: 1MHz~20MHz

Receiving Gain: 72dB, Step Pace 1dB, 6dB

Average: Average Number Of Times 0 To 64 Automatically Adjusted

Update Rate: 4Hz, 8Hz, 16Hz

Filter: Broadband, 5m, 10m, 15m

Probe Type: Single Crystal, Double Crystal

Pulse Mode: Square Waves, Two-sided Waves

Transmit Voltage: 25V~300V, 25V Step Pace

Pulse Width: 25ns~300ns, 5ns Step Pace

Pulse Frequency: 400Hz-3200Hz Auto-adjustment

Specialized Function :A-Scan, B-Scan

Calibration Mode: Automatic Zero Point Calibration, Automatic Sound Velocity Calibra- tion

View Mode: Normal, Difference, Maximum Value Capture

Measuring Range: 0.15~3200mm(Longitudinal Wave Carbon Steel)

Detection Mode: Full Wave, Positive Half Wave, Negative Half Wave, RF, Invert to RF

Measurement Mode: P-E(Pulse-Echo), E-E(Echo-Echo), I-E(Interface-Echo), ME-E(Multiple echo)

Detection Range: 0X-25mm(Steel), 1X-100mm(Steel), 2X-200mm(Steel), 3X-400mm(Steel), 4X-800mm(Steel), 5X-1600mm(Steel), 6X-3200mm(Steel)

Data Storage: 520 Files Can Be Saved, Each File Can Record 252 Sets Of Thickness Values, For A Total Of 130,000 Sets.

Auxiliary Functions: Auto Gain, Auto Range, Auto Blanking E, Auto Freeze, Auto Average, Auto Shutdown (Hibernation),Buzzer Alarm, Upper Computer Communication, Backlight Adjustment

Unit: Metric System, English System

Language: Chinese，English

Probe Interface: Dual LEMO-00 C5

Net Weight: 228g, No Battery

Battery: Two 1.5V AA Batteries

Output Interface: MINI USB，Data Export To The Host Computer

Dimensions :153mm×76mm×37mm

Display Screen: 2.4-inch 320×240 IPS_LCD

Working Temperature: -10°C~55°C

Standard Delivery

Main Unit: 1PC

Alkaline Battery: 2 PCS

Coupling Agent: 1 Bottle

Screwdriver: 1PC

Instrument Case: 1PC

Optional Delivery

Software: TG-SW

USB Cable: TG-USB

Double Crystal 5M Probe: TP0510400

Single Crystal 5M Probe: TP1514302

Single Crystal 15M Probe: TP1507025
