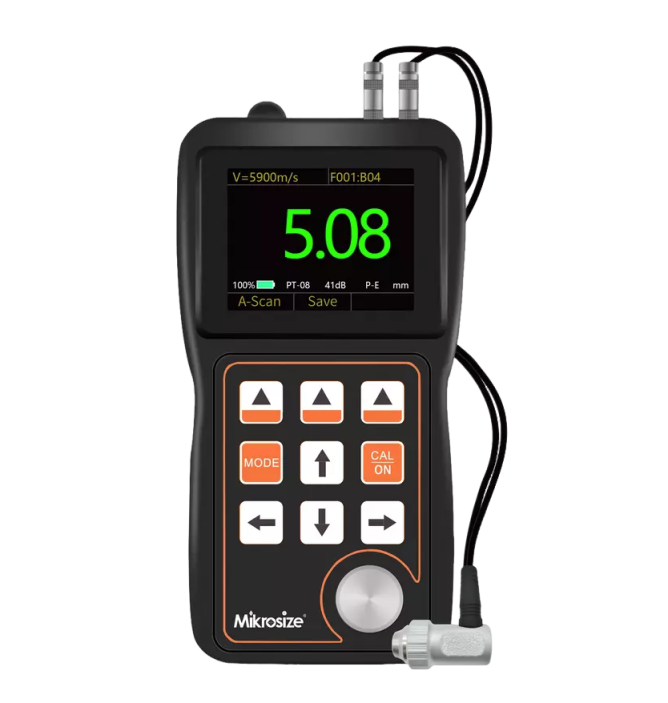

Mikrosize iThick-4000 ເຄື່ອງມວນຄວາມຫວາດຂອງຄວາມຫນາ Ultrasonic (0.6 - 508 mm)

Display Screen: 2.4QVGA (320x240) IPS color screen, Contrast Ratio 10000:1

Working Principle: Ultrasonic Pulse/Echo/Echo Method by Using Dual Crystal Probe

Measuring Range: 0.6 to 508 Millimeters (0.025 to 20.00 Inches)

Measuring Resolution: 0.01mm or 0.1mm(0.001in or 0.01in)

Unit: mm/inch

Display Mode: Thickness Value Mode, Minimum/Maximum Value Capture Mode, Difference/Reduction Rate Mode

V Path Correction: Automatic V-sound Path Correction to Compensate for the Nonlinearity of the Dual Crystal Probe

Measuring Update Rate: 4Hz/s, 8H2/s, 16Hz/s Optional

Range of Material Sound Velocity: 500-9999m/s,0.0179-0.3937in/us

Working Language: Chinese/English/French（optional）

Alarm Set: Max/Min alarm, dynamically change thickness reading color when alarm

Power Supply: Two 1.5V AA Batteries

Standby Time

Low brightness for about 15 hours

High brightness for about 7 hours

Instrument Turn Off: Optional Automatic Shutdown after 5, 10, and 20 Minutes of Inactivity, or Manual Shutdown

Dimensions: 151mmx76mmx37mm(HxWxD)

Net Weight: 280g

Standard Delivery

Main Unit: 1 pc

Probe: TP0510400

Couplant: 1 pc

Alkaline Battery: 2 pcs

Screwdriver: 1 pc

Mini USB Cable: 1 pc

Instrument Case: 1 pc

Optional Delivery

Cast Iron Probe: TP0217508

Small Crystal Tube Probe: TP0508150

Small Crystal Tube Probe: TP0707100

Micro Probe: TP1006025

High Temperature Probe: HTP0315480
