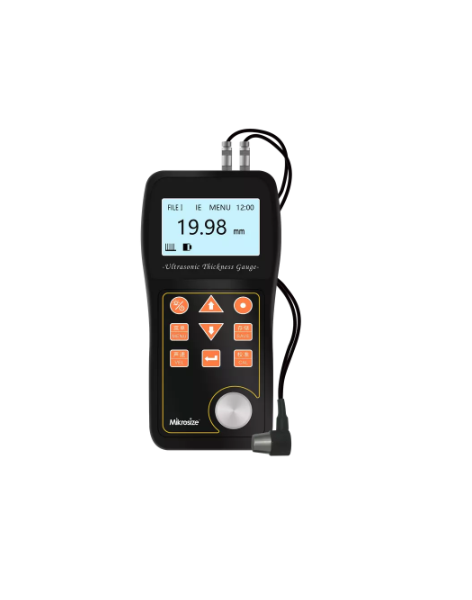

Mikrosize iThick-200 ເຄື່ອງມວນຄວາມຫວາດຂອງຄວາມຫນາ Ultrasonic (1~80mm)

Basic Type/Cast Iron Type/ High Precision Type/ High Temperature Type

Testing Range(Steel）: 1.0~500mm/ 2.0~500mm/ 0.85~300mm/ 4.0~80mm

Display Error(<10 mm): ±0.04mm/ ±0.04mm/ ±0.04mm/ ±0.05mm

Testing Error(≥10 mm): ±0.4%H mm/ ±0.4%H mm/ ±0.4%H mm/ ±0.4%H mm

Testing Frequency: 5MHz/ 2MHz/ 7.5MHz/ 3MHz

Display Accuracy: 0.01mm

Measurement period: 4 times/second

Velocity Range: 1000-9999m/s

Display: FSTN LCD display, with cold light source illumination display

Working Voltage: 2*1.5V

Continuous Working time: 50 hours （without backlight）

Data Storage: 500 groups of measurement results, including measurement time and sound velocity information

Auto Power off: Automatic shutdown without action for 2 minutes (settable), with switch button

Display Content: Thickness value, coupling state, electric quantity state, calibration state, sound velocity, time, etc

Size: 155mm X 68mmX27mm

Weight: 230g
