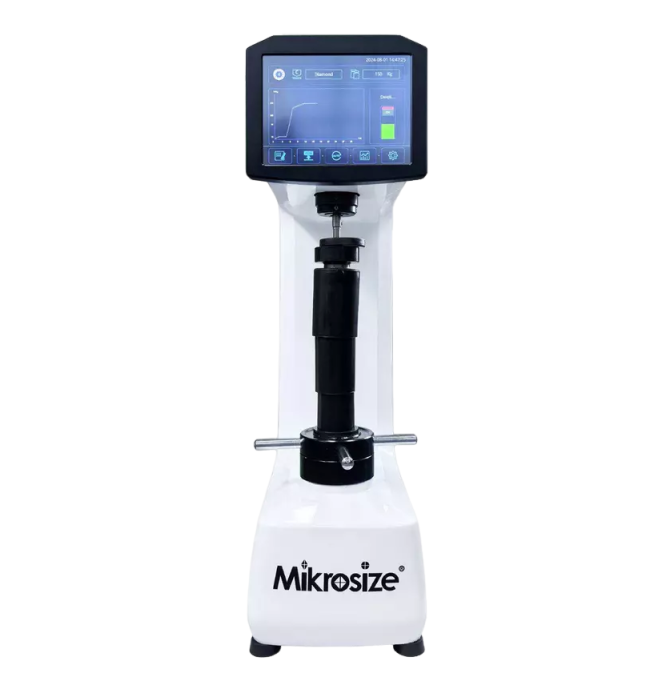

Mikrosize iRocky-45CL ອຸປະກອນທົດສອບຄວາມແຮງຫນັກຫຼັກ Rockwell ພື້ນຜິວຈໍສະຕັອນສະເປັດ (71-94HR15N, 42-86HR30N, 20-77HR45N, 67-93HR15T, 29-82HR30T, 10-72HR45T)
Test force: 15kg, 30kg, 45kg
Test range:
71 - 94HR15N, 42 - 86HR30N, 20 - 77HR45N
67 - 93HR15T, 29 - 82HR30T, 10 - 72HR45T
Indentor: Diamond rockwell indentor: Φ1.588mm steel ball indentor
Tets space:
Test Height: 230mm
Test Throat: 170mm
Loading method: Initial Test Force: manual
Main Test Force: Automatic (loading-dwelling-unloading)
Hardness Scale: HR15T, HR30T, HR45T, HR30N, HR45N, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y
Conversion Scale: HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW
Display: 8 inch touch screen
Hardness resolution: 0.1HR
Power supply: 110/220V, 50/60Hz
Optional Delivery
Small V-shape Test Anvil: VTA-S
Setting Table: VR-T
Rockwell Indentor Protector: RIP
1.588 Steel Ball: RSB-1.588
3.175mm Steel Ball Indentor: RSI-3.175
3.175 Steel Ball: RSB-3.175
6.35mm Steel Ball Indentor: RSI-6.35
6.35mm Steel Ball: RSB-6.35
12.7mm Steel Ball Indentor: RSI-12.7
12.7mm Steel Ball: RSB-12.7
Rockwell Hardness Block: HR45N/15T/30T/ 45T/15Y/50Y/45Y
Standard Delivery
Mainframe: 1pc
Φ1.588mm Ball Indentor: 1 pc
Φ60mm Flat Anvil: 1 pc
Hardness Block 65-80HR30N: 1 pc
Hardness Block 80-90HR15N: 1 pc
Wrench: 2 pcs
Portable printer: 1 pc
Anti-dust cover: 1 pc
Diamond Rockwell Indentor: 1 pc
Φ150mm Flat Anvil: 1 pc
Φ40mm V-shape anvil: 1 pc
Hard nes Block70-85HR30TW: 1 pc
Power adaptor: 1 pc
