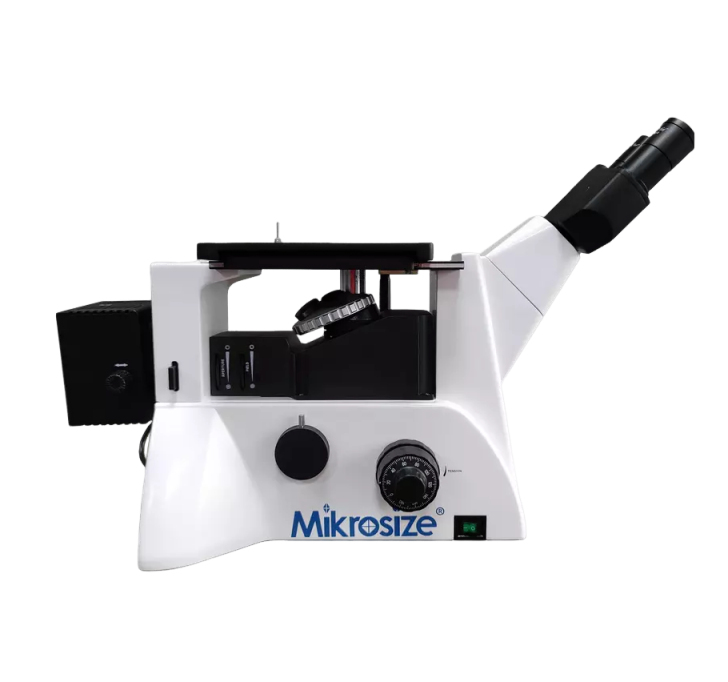

Mikrosize iMetal-880BD ເຄື່ອງມະໂຄສໂຄປິດເຫຼັກກະສິດຕົວກັບ
Equipped with dark / bright field objective
Eyepiece: 10x Wide View Plan Eyepiece WF10X/Ø22mm
Eyepiece Interface is Ф30mm
Inifitive Planachromatic Objectives:
PL L5X/0.12 BD working distance：9.70 mm
PL L10X/0.25 BD working distance：9.30 mm
PL L20X/0.40 BD working distance：7.23mm
PL L50X/0.70 BD working distance：2.50 mm
Eyepiece Adaptor: Hinged Binocular Tube,With an Observation Inclined Angle of 45°, And a Interpupillary Distance of 53-75mm
Nosepiece: Quintuple Nosepiece(Inward-facing Ball Positioning)
Focusing: Coarse/fine Coaxial Focus With Locking Device,Micro-lattice Value:2µm
Mechanical Movement Stage:
Overall Dimension:242mmX200mm.
Movement Range:30mmX30mm
Circular Rotating Mechanical Stage:
Maximum Measurement:Ф130mm.
Minimum Clear Aperture:Less Than Ф12mm
Illumination System: 12V/50W Halogen Lamp, adjustable brightness
Built-in Field Diaphragm,Aperture Diaphragm and Puller Type Polarizer
Equipped with Frosted Glass,Yellow,Green and Blue Filters
Power supply: AC220V/50Hz; 110V/60Hz
