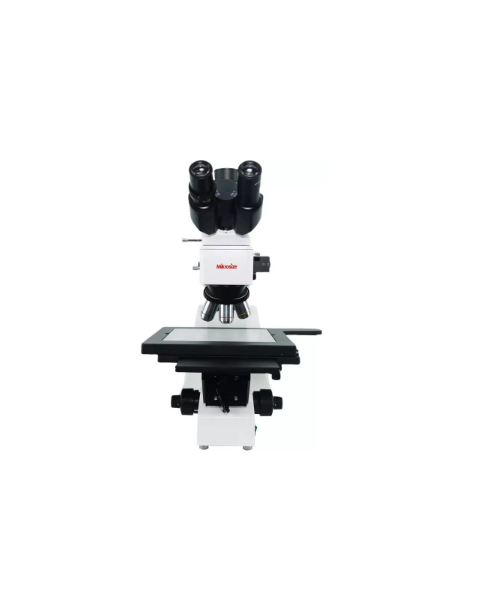

Mikrosize iMetal-530B ເຄື່ອງມອງມິຄໂຣສໂກປິກແບບຕັ້ງຕົ້ນ
Eyepiece: Wide Viewing Field WF10X(Field NumberΦ22mm)
Infinite Plan Achromatic Objective Lens:
5X/0.12 BD Working Distance：26.1 mm
10X/0.25 BD Working Distance：5.0 mm
40X/0.60 BD Working Distance：3.98 mm
60X/0.75 BD Working Distance：1.22 mm
Eyepiece Tube: 30˚ Inclined, Pupil Adjustment Range 53~75mm.
Focusing Mechanism: Coarse&Fine Coaxial Focusing, with Locking and Limiting Device, Microgrid Value:2μm.
Converter: Five-position(Inward ball positioning)
Mechanical Stage:
Double-deck Moving Mechanical Stage,
Dimension: 210mmX140mm, Moving Range:75mmX50mm
Built-in Viewing Field Diagram, Aperture Diagram, Color Filter Conversion Device, Push-pull Polarizer and Analyzer
Transmitted Illumination System
Lifting Abbe Condenser NA.1.25
A Built-in Viewing Field Diagram in Light Collector
Illumination: 6V30W Halogen Lamp, Adjustable Brightness
