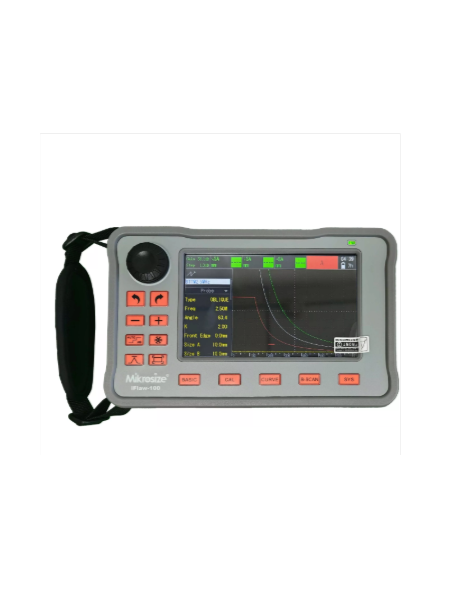

Mikrosize iFlaw-100 ອຸປະກອນກວດສອບຂໍ້ຜິດປົກ Ultrasonic (0.1MHz~20MHz)

Bandwidth: 0.1MHz~20MHz

Gain: 120dB, Pace 0.1dB, 0.6dB, 1dB, 2dB, 6dB

Wave Filter: Broadband,1M,1.25M,2.5M,5M,10M,15M,1M-5M

Sampling Rate: Hardware Sampling Rate 100MSPS, Equivalent Sampling Rate 400MSPS

Detection Mode: Full Wave, Positive Half Wave, Negative Half Wave, RF, Envelope

Detection Range: 10 Meters (Longitudinal Wave Carbon Steel),Pace 100mm, 10mm, 0.1mm

Pulse Mode: Sharp Pulse, Square Wave, Dual-square Wave

Pulse Voltage: 25V~300V, 25V Pace

Pulse Width: 0ns~500ns Continuously Adjustable,10ns Pace

Emission Damping: Strong(100Ω),Weak(1000Ω)Adjustable

Pulse Frequency: Automatic Or Manual, Automatic Range(200Hz-1KHz), Manual Range(0-10KHz)

Probe Channel: 200 Groups, Supporting Operations Such As Creating, Previewing, Deleting, Renaming, Overwriting, And Restoring

Gate Alarm: Gate A And B Alarm, Lost Wave/Incoming Wave

Gate Mode: Independent Gate A, Gate B

Measurement Mode: Peak, Front Edge, J Front Edge

Quantitative Mode: DAC Curve, AVG(DGS)Curve

Flaw Detection Standards: AWS D1.1/D1.5, NB/T 47013, GB/T 29712, GB/T 11345

Saving Content: Single Frame, Multi-frame Recording (≤ 500 Frames), Screenshot, B-scan Screenshot

Auxiliary Functions: Professional B-scan, Automatic Gain, Peak Memory, Waveform Freezing, Channel Management, Gate Alarm, Gate Expansion, Automatic Gate, Full Screen Touch, Virtual Keyboard, Color Half Span, Quick Screenshot, Flaw Reports, Channel Import/Export

Display Screen: High Definition 5.0 Inch 800×480 IPS_LCD

Probe Interface: Dual LEMO-00 C5

Output Interface: Type-C1, MINI USB

Input Interface: Type-C2(B ScanTrolley)

B-scan Imaging: Supports Up To 700 Sets Of A-scan Synthesis, With The Highest Resolution φ 0.6mm

Data Storage: 32GB SD Card

Charger: 65W_PD Fast Charging ,Standard Type-c Interface(100~240V, 50~60Hz)

Size: 183mm×113mm×45mm

Weight: 700g, Including Battery But Not Rubber Sleeve

Language: Chinese,English

Unit: Metric System, Imperial Syetem

Battery: 7.4V 8000mAh Lithium battery, 12 hours of battery life

Operation Temperature: -10°C~55°C

Resolution ratio: 40dB(Metrological performance requirements：≥26dB)

Dynamic range: 32dB(Metrological performance requirements：≥26dB)

Sensitivity margin: 50dB(Metrological performance requirements：≥42dB)

Vertical linearity: 1.8%(Metrological performance requirements：≤6%)

Horizontal linearity: 0.5%(Metrological performance requirements：≤2%)

Standard Delivery:

Main Unit: 1 pc

Probe (High Precision Straight Probe, Angle Probe): Each 1 pc

Probe Cable: 2 pcs

Charger: 1 pc

Power Cable: 1 pc

Sd Card(8g): 1 pc
