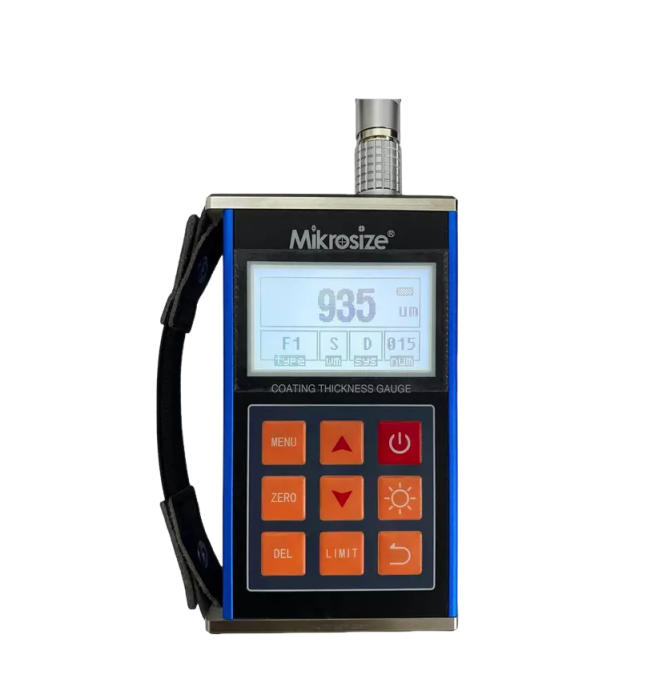

Mikrosize iCoat-320 N1 ເຄື່ອງມວນຄວາມຫນາຂອງການຄຸດຄວາມ (0~1250 μm)

Operating Principle: Eddy Current

Substrate Material: Non-magnetic Metal Substrate (Copper, Aluminum, Zinc, Tin Etc.)

Coating Material: Non-conductive coating (enamel, rubber, paint, plastic and etc.)

Measuring Range (μm): 0~1250

Low Range Resolution (μm): 0.1

Accuracy

One-point Calibration (μm): ±(3%H+1.5)

Two-point Calibration (μm): ±[(1~3)%H+1.5]

Measuring Conditions

Min Curvature Radius: 3mm

Diameter of the Min Area: Φ5mm

Critical Thickness of Substrate: 0.3mm

Operating Environment

Temperature: 0°C~40°C

Humidity: 20%~90%RH

No Strong Magnetic Field

Power Supply: 2×1.5V AA (Size 5)

Dimensions: 125mm×70mm×31mm

Net Weight: about 400g

Standard Delivery

Main Unit: 1

Probe: 1(F1 or N1)

Calibration Foils: 5 PCS

Zero Plate: 1(Iron or Aluminum)

Instrument Case: 1

Optional Delivery

F1 (Iron-based Probe): CTP01250F00

F1/90° (Right-angle Probe): CTP01250F90

F10 (Large Range Probe): CTP10000F10

N1 (Aluminum-based Probe): CTP01250N00
