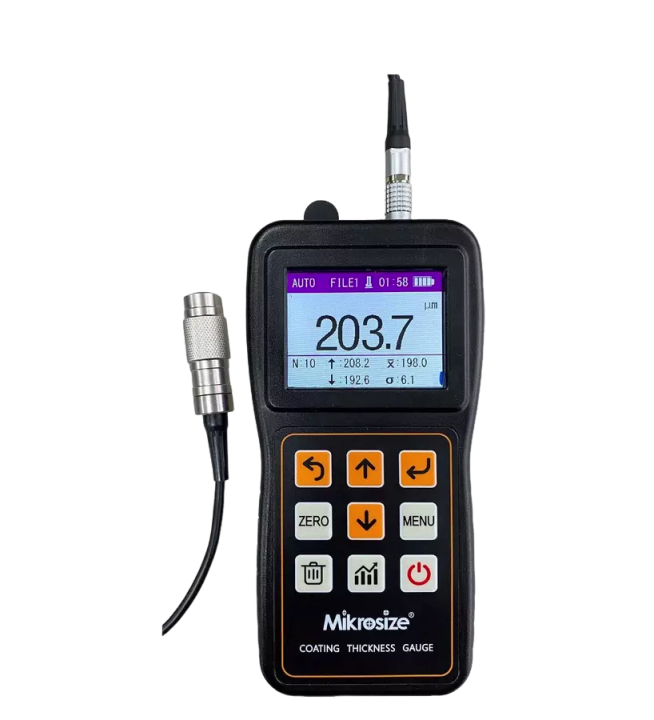

Mikrosize iCoat-200 ເຄື່ອງມວນຄວາມຫນາຂອງການຄຸດຄວາມ (0~1500μm ; Magnetic)

Probe Type: F

Measuring Range: 0~1500μm

Working Principle: Magnetic

Resolution: 0.1μm

Accuracy:

Zero-pointCalibration: ±(2%H+1)μm

Two-point Calibration: ±[(1~2)%H+1]μm

Test Conditions:

Minimum radius of curvature: Convex 1.5mm

Minimum area diameter: Φ7mm

Matrix critical thickness: 0.5mm

Temperature: 0 °C~40 °C

Humidity: 20% Rh~90% Rh

No Strong Magnetic Field Environment

Power Supply: 2*AA Alkaline batteries

Weight: About 240g

Dimensions: 151×76×38mm

Standard Delivery

Main Unit: 1 pc

Iron Plate or Aluminum Plate: 1 pc

Calibration Foils: 5 pcs

Package Case: 1 pc

No.5 Alkaline Battery (1.5V): 2 pcs

Probe: optional
