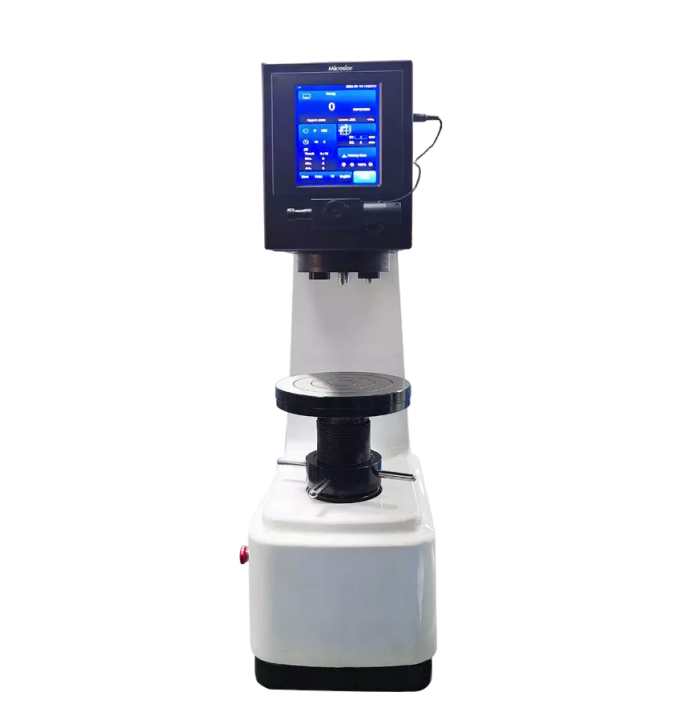

Mikrosize iBrin-3000CLD ອຸປະກອນທົດສອບຄວາມແຂງດິຈິຕອນ (8-650HBW)

Test Force(N/kgf): 31.25kgf, 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf(306.45N , 612.9N, 980.7N,  1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N)

Test Range: 8-650HBW

Main Test Force Loading Time: 2~8s

Dwelling Time: 0~99s

Test Height: 270mm

Test Throat: 190mm

Indenter Objective Transformation: Automatic Turret

Indentation Measurement Method: Digital Display Micrometer

Eyepiece: 20X

Objective Lens: 1X, 2X

Data Display: Industrial Touch Screen

Indenter Diameter (mm): Φ2.5, Φ5, Φ10 Installed in the Same Turret

Data Output: Built-in Printer, RS232 Interface

Hardness Conversion: HBW convert to HR , HV

Light Source: LED

Machine Dimension: 1000*595*350mm

Net Weight: 150kg

Power Supply: AC110/220V, 50Hz

Packing List：

Machine Mainframe: 1 Set

Big Flat Anvil, Small Flat Anvil, V-Shape Anvil: 1 PC ea.

Objective Lens 1X: 1 PC

Objective Lens 2X: 1 PC

Φ2.5mm Hard Ball Indenter: 1 PC

Φ5mm Hard Ball Indenter: 1 PC

Φ10mm Hard Ball Indenter: 1 PC

Brinell Hardness Standard Block 200±50HBW 10/3000: 1 PC

Brinell Hardness Standard Block 95±15HBW 10/1000: 1 PC

Accessory Box: 1 PC

Anti-dust Cover: 1 PC

Power Cord: 1 PC

2A Fuse: 2 PCS

Allen key: 1 PC

Digital Micrometer: 1 Set

Instruction Manual: 1 Copy

Product Certificate, Warranty Card: 1 Copy ea.
