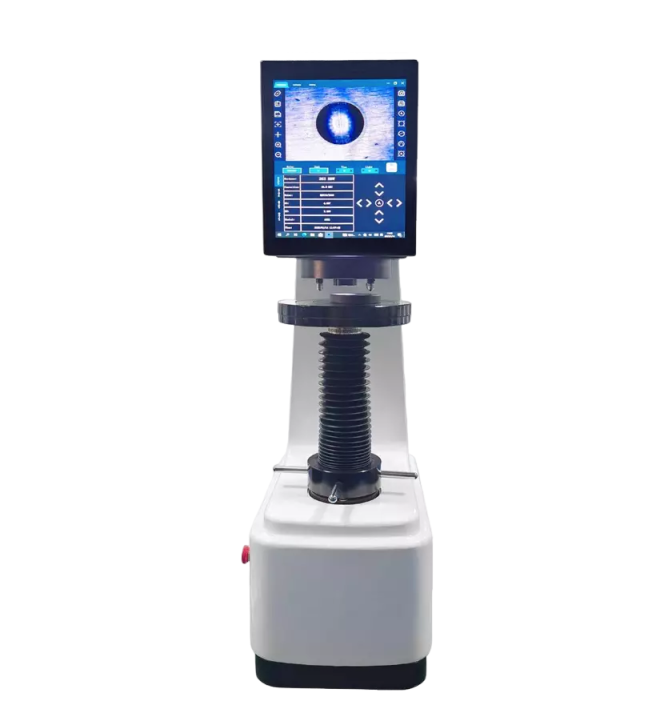

Mikrosize iBrin-3000CLA ອຸປະກອນທົດສອບຄວາມແຮງຫນາດດິຈິຕອນ Brinell (8 ~ 650HBW, auto)

Turret: auto

Test range: 8~650HBW

Test force: 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000 kgf, 1500kgf, 3000kgf

N: 612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 8907N, 14710N, 29420N

Hardness Scale: HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500,HBW10/3000

Conversion Scale: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HS, HV, HK, HBW, HR15, HR30, HR45N, HR15T, HR30T, HR45T

Indentor size: Φ2.5mm, Φ5mm, Φ10mm

Optical System: Eyepiece: 20x, Objective: 1x, Total Magnification: 20x

Test height: 280mm

Test throat: 150mm

Dwelling time: 0~99s

Power supply: AC220V, 50Hz

Machine dimension: 230*600*920mm

Net weight: 130kg

Standard delivery:

Main frame: 1 set

Measuring Eyepiece: 1 pc

Ф150mm Test Anvil: 1 pc

Ф78mm Test Anvil: 1 pc

78mm V-shape Test Anvil: 1 pc

Ф10mm Hard Alloy Brinell Indenter: 1 pc

Ф5mm Hard Alloy Brinell Indenter: 1 pc

Ф2.5mm Hard Alloy Brinell Indenter: 1 pc

Brinell Hardness Block HB10/3000, HB10/1000:2 pcs

Hard Alloy Steel Ball 2.5/5/10mm: each 1 pc
