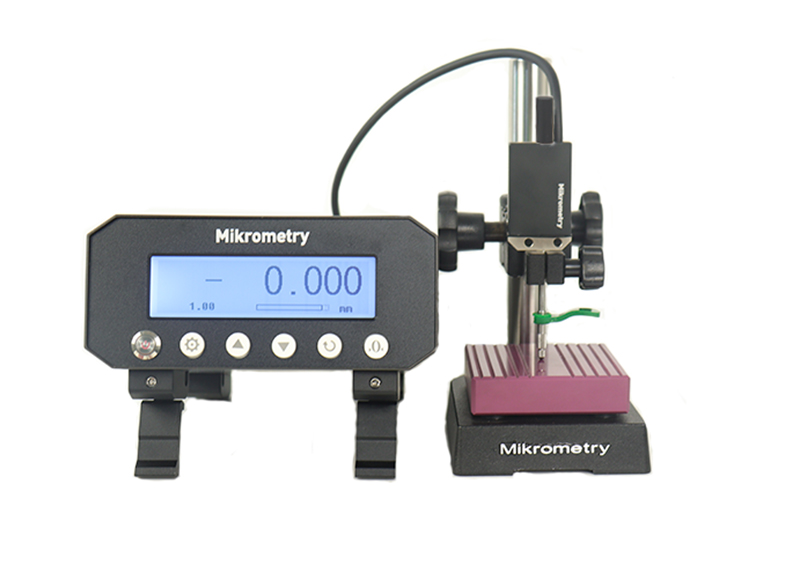

Mikrometry EHG12-01 ລະບົບການວັດແທກການເຄື່ອນຍ້າຍດິຈິຕອນ (0.1µm)

Measurement Range: 0-12.5mm

Least count: 0.1µm

Repeated accuracy: ≤0.2µm

Accuracy（19-20℃): ≤1µm

Measuring speed: Maximum 5000 mm/s

Measuring force: 0.7±0.2N

External output: data interface, USB, RS232

Displayer: Independent 4-inch dot matrix LCD display

Measuring pin（standard configuration): Annulus needle

Operating environment: 0-40℃

Units: mm/μm

Test board: 80*80mm ceramics(Other optional)

Standard configuration: data display instruments board Measuring pin power line handle

Power supply: input:AC100-240v 50-60Hz output:DC5V/1A
