Bandwidth: 200 MHz
Rise Time: ≤ 1.75 ns
Analog Channels: 4
Sampling Rate: 1 GSa/s
Memory Depth: 110 Mpts
Maximum Waveform Capture Rate: 50,000 wfms/s
Vertical Resolution: 12 bit
Interfaces: USB 3.0 Host, USB Type-C, LAN, HDMI, Trigger Out
Display: 8" TFT LCD capacitive touch screen, 1280 × 800 pixels
Battery (Optional): 3.7 V, 16000 mAh Lithium-ion battery
Charging: Standard DC 12 V adapter, supports Type-C charging
Multifunction Meter Accuracy: 4½ digits
Dimensions / Net Weight: 265 × 174 × 31 mm (W × H × T) / 1.73 kg
Standard Accessories
Main unit *1
Passive Probe *4
Multimeter pen * 1 pair (Multimeter is not included in the model with the “N” symbol)
Power adapter *1
Power cord *1
Quick Guide *1
Battery (optional). Pre-installed if purchased

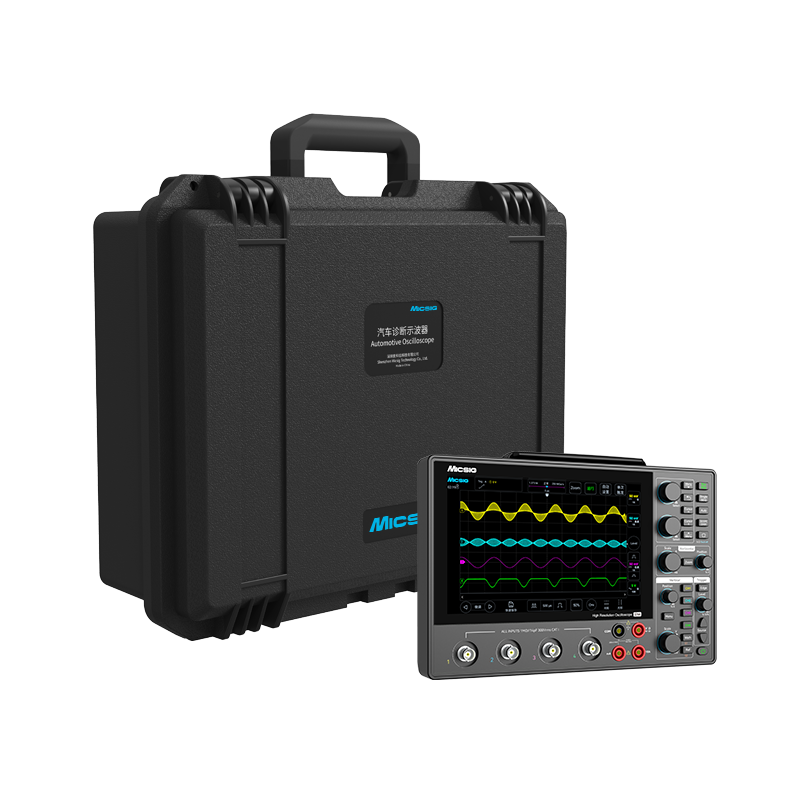

Micsig Suitcase set Impact, Vibration, Crush resistant, Dustproof, Moisture-proof, Customized
