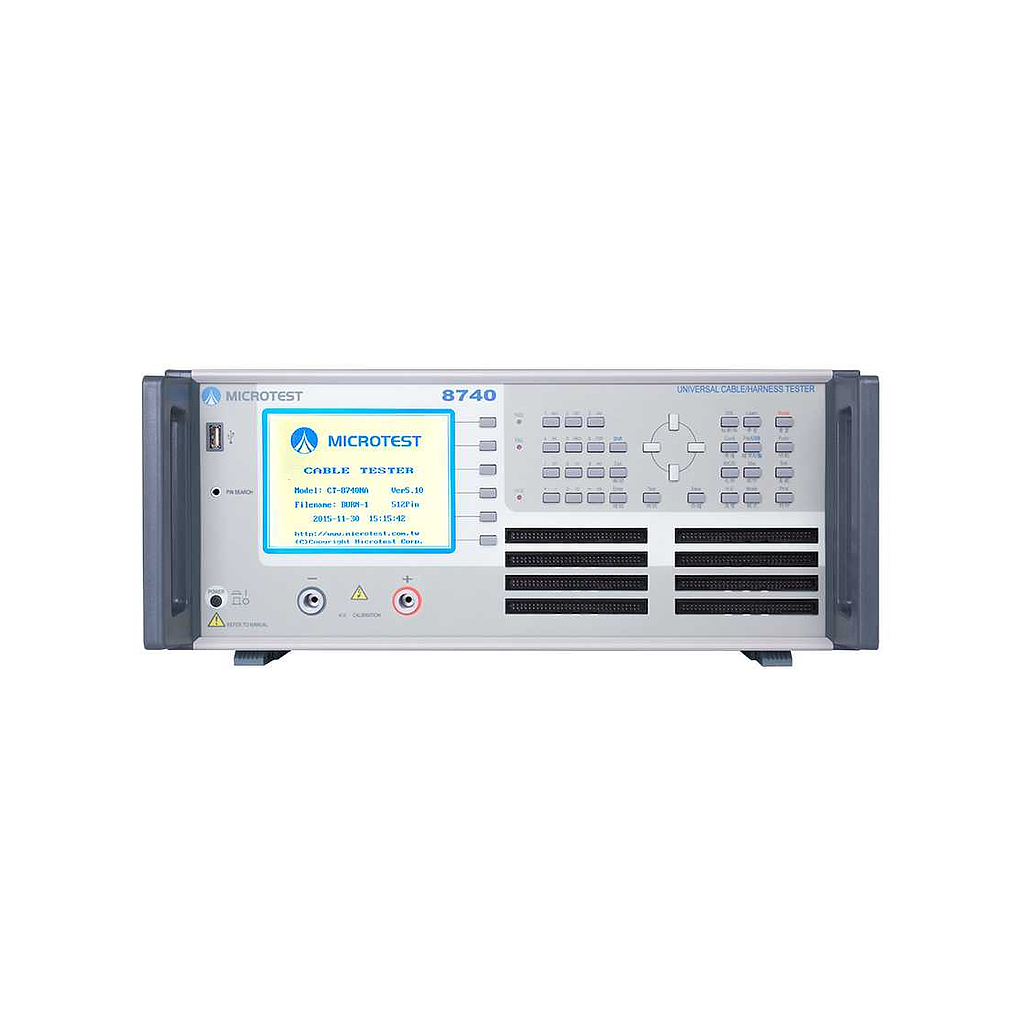

MICROTEST 8740FA ຕົວທົດສອບສາຍ/ສາຍຮັດ (1.5KVDC, 1KVAC, 128)
Test Pin: 128
AC Hipot: 100-1000V
DC Hipot: 50-1500V
AC Hipot Leakage Current: 0.01mA ~5mA
DC Hipot Leakage Current:0.1µA ~ 1000µA
DC Hipot Insulation: 1MΩ ~ 1GΩ
Hipot Output Accuracy: ±5%
Hipot Measurement Accuracy: ±5%
Rated Output:5Vdc
Low Voltage Resistance:0.1Ω ~ 2MΩ
Basic Measurement Time: 0.01 Second
Test Scan Mode: Auto, Manual, External Trigger
Measurement Signal: Low Voltage Measurement Signal
DUT Requirement:Maximum Electric Capacity Allowance 1μF
Panel: System / Rapid / Edit / Function
Indicator:Pass/Fail HV LED red-green indicator lights/Screen Display/Sound
Power Supply:
Fixed Voltage 115 / 230 Vac ±10%
Frequency 60 / 50 Hz
Power Consumption : 70VA
Display:320*240 dot-matrix display
Interface:RS-232, USB Host, Print, Remote
Environment:Temperature :15℃ ~ 35℃ Humidity : RH≦75%
Dimension (W*H*D): 435x145x406 mm
Weight : 8.44kg
