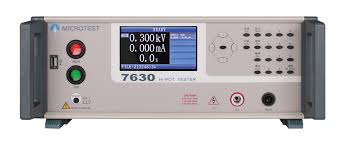

MICROTEST 7630 ເຄື່ອງທົດສອບ Hipot (5KVAC)
Measuring Data:
Item Range; Resoultion ; Accuracy
AC Output Voltage: 10V ~ 5000V; 1; ±(3% of setting+5V)
AC Output Frequency: 50 / 60Hz
AC Upper Threshold (mA): 0.001 ~ 30; 0.001; ±3%
AC Lower Threshold (mA): 0 ~ 30.99; 0.001; ±3%
AC Test Duration (Ramp Time): 0.1 ~ 999s; (0.1 ~ 10s); 0.1
AC Arcing Detection: 0 ~ 20
DC Output Voltage: 10V ~ 6000V; 1; ±(3% of setting+5V)
DC Upper Threshold (mA): 0.001 ~ 5; 0.001; ±3%
DC Lower Threshold (mA): 0 ~ 4.99; 0.001; ±3%
DC Test Duration (Ramp Time): 0.1 ~ 999s; (0.1 ~ 10s); 0.1
DC Arcing Detection: 0 ~ 5
IR Output Voltage: 10 ~ 1000Vdc; 1; ±(3% of setting+5V)
IR Upper Threshold (MΩ): 1 ~ 12000; 1
IR Lower Threshold (MΩ): 0 ~ 11999; 1
100 ~ 500V, 1 ~ 1000MΩ(±5%)
500 ~ 1000V, 2 ~ 12000MΩ(±5%)
IR Test Duration (Ramp Time): 0.1 ~ 999s: (0.01 ~ 10s); 0.1
AC Output Voltage: 10V ~ 5000V; 1; ±(3% of setting+5V)
AC Output Frequency: 50 / 60Hz
AC Upper Threshold (mA): 0.001 ~ 30; 0.001; ±3%
AC Lower Threshold (mA): 0 ~ 30.99; 0.001; ±3%
AC Test Duration (Ramp Time): 0.1 ~ 999s; (0.1 ~ 10s); 0.1
AC Arcing Detection: 0 ~ 20
DC Output Voltage: 10V ~ 6000V; 1; ±(3% of setting+5V)
DC Upper Threshold (mA): 0.001 ~ 5; 0.001; ±3%
DC Lower Threshold (mA): 0 ~ 4.99; 0.001; ±3%
DC Test Duration (Ramp Time): 0.1 ~ 999s; (0.1 ~ 10s); 0.1
DC Arcing Detection: 0 ~ 5
IR Output Voltage: 10 ~ 1000Vdc; 1; ±(3% of setting+5V)
IR Upper Threshold (MΩ): 1 ~ 12000; 1
IR Lower Threshold (MΩ): 0 ~ 11999; 1
100 ~ 500V, 1 ~ 1000MΩ(±5%)
500 ~ 1000V, 2 ~ 12000MΩ(±5%)
IR Test Duration (Ramp Time): 0.1 ~ 999s: (0.01 ~ 10s); 0.1
Power Supply:Voltage 90 ~ 264Vac
Frequency 50 / 60Hz
Display: 480*272, 4.3" TFT LCD
Interface:RS-232 ／ PLC Remote ／ USB Host ／ USB Device ／ EXT IO
PLC Remote Control:Test, Abort
PLC Output Signal: Pass, Fail, HV output, Testing
Flash Memory:30 sets
Operation: Manual、Remote Trigger
Environment:Temperature : 5℃ ~ 40°C Humidity : 0 ~ 80%
Dimension (W*H*D):365x145x430 mm
Weight:14 Kg
Standard Accessories
Power Cord,User Manual CD,HV Test Cable,D-Sub footswitch (F760001)
Optional Accessories
RS-232 Cable ,Test Box (F7620) ,Remote Cable ,8/16 Channels Expansion
