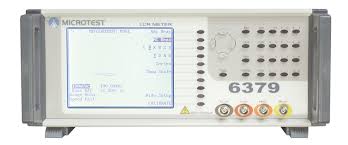

MICROTEST 6379 ເຄື່ອງວິເຄາະ impedance (10MHz)

Test Frequency:10Hz-1MHz

Points Of Test Frequency: Continuity

Basic Accuracy: ± 0.08%

AC Drive Level: 10mV to 2Vrms (1m Vrms solution)

DC Drive Level: 0.01V-2V

Output Impedance: 100Ω

Frequency trimming resolution: 5 Digits

Frequency output accuracy: ±0.01%

AC / DC test speed Max.: 8mS

Measured Value Detection Mode:Define upper and lower thresholds according to main and sub parameters

ESR:Series/Parallel

Mathematical Mode:Absolute/Percentage

Test Range:Automatic/Lock

Indicator:Pass/Fail and Built-in speaker

Safety:EN61010-1

Immunity:EN61326-1

Emissions:EN55022 Class A

Calibration:Open Circuit / Short Circuit: Avoid the misreading caused by the stray capacitance from kelvin clips and fixtures

Auto-save when power-off function: When the power is turned off or encounter a power outage, all the data will be saved automatically and recovered when tester system is switched on again

Power Supply:Voltage 90-132Vac or 198-264Vac (selectable)

: Frequency 47 ~ 63Hz

Display:320*240 dot-matrix display

Interface:RS-232, GPIB(option), Handler(option)

Flash Memory;Built-in SDRAM for storage of 64 groups of Multi-steps setting (Each group contains up to 30 steps)

Operation:Auto、Manual、RS-232、GPIB(option)、Handler(option)

Temperature : 10°C to 40°C Humidity : 20 ~ 90%

Dimension (W*H*D):337x145x522 mm

Weight:6.5 Kg
